GeoMap TELECOM, Using GIS to manage the telecommunications network system

TITLE:	GeoMap TELECOM, Using GIS to manage the telecommunications network system
DEFINING ISSUES	The structure of telecommunications network between central stations and users, with all necessary technical details. Finding the place of intervention in any case of malfunction. How this network coexist within other local networks water sewerage, electricity cables , gas distribution system, etc.).
GIS SOLUTION:	GEOTER Proiect S.R.L. has developed an client/server based application in co-operation with ROMTELECOM Arges.
APPLICATION:	The application helps to renewing, questioning, repairing and deploying the telecommunication network system who exist in a locality
SOFTWARE:	This is an client/server application and it has developedusing Visual Basic and Map Objects. The application was build so that it permit access of the users just to the functions that the local application administrator agreed to.GeoMAP TELECOM is a GIS application meant to manage the telecommunication network systems. The application helps maintaining, developing and designing the telecommunication network systems.

GeoMAP TELECOM was designed to be used by the following departments:

Technical department

updating the TELECOM equipment
updating the databases regarding the network
queering for notification, reports, network statistics

Design department

network expansion design
permits for new construction

Accounting department

inventory fixing for the equipment

Network department

queering for group cards, reports, general and current repair planning
map locating for the network damage

Technical supervision / check-up department

updating the databases for the group cards and subscribers
free and/or busy connections reports

Commercial department

updating the subscriber application forms
map locating of the assigning areas

Manager

queering and report

The application administrator establishes for each unique user a work domain,user possibility to modify geographical or numeric data, user access to certain fields of the databases, printing reports, etc.

Information System Environment Requirements

The application was developed using Map Object 1.1 and Visual Basic, under Windows 95 or Windows NT and requires a minimum of 16 MB RAM. Geographic layers can be as follows: shapefile, ArcInfo coverage, SDE layers.
At the same time the application can import data (and transform them in shapefile) from .DXF file format or from .TXT file format with elements co-ordinates. Shapefile layers can be created and edited in the same manner to ArcView.
Databases can be in .DBF (Dbase) format, .MDB (Access) format for small networks or RDBMS as SQL SERVER, ORACLE or INFORMIX for medium and large networks (the application uses the client-server technology).

Necessary data

Specific data (TELECOM)

main and secondary sewerage
manholes (connection rooms)
telegraph polesterminal boxes
signal carriers: underground and overhead telegraphic cables

External data (specific to other institutions)

electric networks (underground and overhead)
gas and water pipes networks

External data (general layers)

buildings and their addresses
lands sorted by usage category
street network
demographic data

GeoMAP TELECOM main functions

displaying, selection and map location of an element
updating, modifying, deleting of an element
displaying the cross-section of the support with pipe and cable repartition

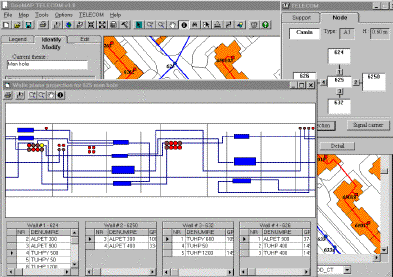

viewing the plane projection of the selected man hole including cables position on each wall with the possibility to change the place of viewing following the man holes in a step for step manner.

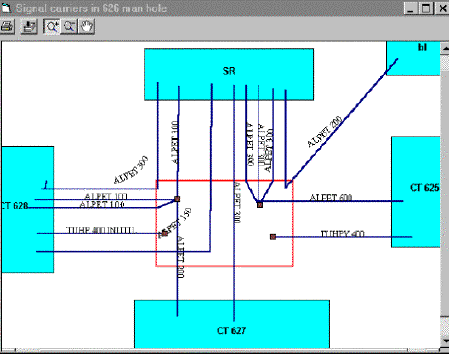

viewing of the electrical scheme which connects man hole with the adjacent man holes (possibly adjacent terminal boxes).

automatic generation of the combined scheme of the cables in a selected area.

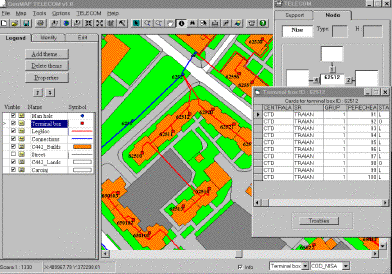

displaying of the group cards corresponding to a selected terminal box.

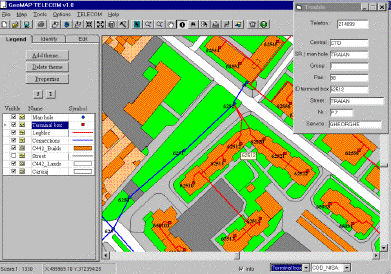

Troubleshooting: locating the terminal box, the card group, corresponding pair and the subscriber's name and address which declared the malfunction (map locating of the damage)

Route's generation for a pair from the subscriber to the telephone exchange.- choosing the available route between two man holes.- displaying the free pairs and the damaged pairs in a selected area.- cables report for a selected area.- finding the best route between two network nodes.- dispersions of the requests for new subscribers.This application is already running at ROMTELECOM Arges.
