Christopher G. Fox
INTEGRATION AND DISTRIBUTION OF DEEPSEA OCEANOGRAPHIC DATA FROM THE
NE PACIFIC USING ArcInfo AND ARCVIEW
The VENTS (web link) Program of NOAA Pacific Marine
Environmental Laboratory is an interdisciplinary research
initiative that brings together scientists from a wide range of
disciplines, including geophysics, geology, physical
oceanography, chemistry, and biology. Researchers within
that group studying the Juan de Fuca Ridge seafloor
spreading center off the coast of Oregon and Washington
have discovered that there is tremendous insight to be gained
through the comparison of interdisciplinary databases in a
graphic, interactive environment. This is what prompted, in
1993, the design and development of a comprehensive Juan
de Fuca Ridge GIS using ArcInfo and ArcView
software. The interest in the VENTS GIS has been
instantaneous due to a large community of scientists outside
of NOAA working on similar Juan de Fuca Ridge problems.
NOAA's expectation is that the basic architecture and
approach developed by the VENTS program will be
extended to the broader scientific community, making the
GIS not only an analysis tool, but also a conduit for data
exchange and scientific discourse. They envision a distributed
database system, with individual data sets residing with the
scientists who collected the data, but with all data products
made network-accessible to all participants. This paper
presents the results of VENTS ongoing efforts in scientific
information management and in the display and distribution
of Juan de Fuca Ridge data through the World Wide Web
using an interactive link to ArcView.
Quick Reference
Data Integration
Data Distribution
Figure Descriptions
Related Publications
Data Integration
The study of hydrothermal vents involves the integration of multidiscplinary
data as depicted in the organizational diagram
Figure 1,
of the disciplines coordinated through the VENTS GIS program. The data spans
scales from the entire NE Pacific region to within a few meters of a known
marker, down to the precise location of a particular vent orifice. Accuracy
of a given data set is relative to the scale of the data. Integrating
these data is complicated by the presence of the overlying 1000's of meters
of water making visual and GPS verification of the locations impossible.
Locating objects underwater often involves translating a local X-Y grid
established by acoustic transponder navigation techniques into
latitude-longitude coordinates. The acoustic transponder network is not
a permanent fixture on the seafloor and the re-establishment of a new
net with each field season always involves the reprocessing of previous
data to align known features. GIS displays are used to evaluate data
inconsistencies and provide quantitative information about these offsets.
Once all data has been coregistered, GIS then provides the tool for
integrating various data sets for analysis.
A model of the entire data collection, archiving, analysis and
decision-making process in which GIS is an integral component is depicted in
a scientific information model, SIM, shown in
Figure 2a-c.
.
Data distribution via GIS is still under development at VENTS. Due to the
amount of data and constant revisions involved with these types of data,
VENTS looked for distribution via a connection to the GIS database through
ArcView. This would allow outside users who do not have access to GIS
technology to utilize the GIS functionality with the current data set. The
GUI would be customized for increased intuitive use as well as simplified by
removing unnecessary menus, tools, buttons. Users would also have the option
of saving certain data in familiar tabular formats as well as saving displays
in postscript files for replicating on their parent systems. While under
development, the current ArcView web connection has been quietly available
to researchers involved in the study of the 1993
CoAxial (web link) spreading event
eruption along the Juan de Fuca Ridge in the NE Pacific. It has been
successfully used across the country but there are some limitations. Depending
on the end-users type of web connection, the transmittal speed can be very
slow thus even further burdeoning the ArcView display and refreshal speeds.
To minimize this, the project used for the web display has been chosen to
use coverages as specific to the View and as small as possible. The other
major limitation is that only users with an XWindow display and IP address
can even access the system. Many of the CoAxial researchers use PC's and MAC's
without XWindow capabilities. Although software can be purchased for these
systems (and some have done this), many do not have funds available.
An example of the WEB page greeting to initiate VENTS ArcView
is shown in
Figure 3. The instructions explain that access
to the GIS is only available to users with XWindow display capabilities.
On UNIX systems, the host machine must be added to the .xhosts file prior
further access. There are some web links for users wanting additional
instructions on using ArcView and background GIS information.
The second WEB page encountered by browsers is depicted in
Figure 4. Users are instructed to enter their IP
address with a ":0.0" extension before finally gaining access to the GIS.
The IP address is essential in order for the XWindow display to send the
proper graphics.
If the user has successfully connected to the VENTS GIS, the initial ArcView
project is displayed in Figure 5. A brief
message box gives some additional ArcView instructions to get the user
started.
The interactive ArcView web connection is driven by a perl script running in an html document which calls a specific ArcView project (*.apr file). The html
and perl script were developed and are copyrighted by the
Information Center for the Environment, UC Davis. The author is Harvey Chinn,
harvey@ice.ucdavis.edu. The actual html used for the VENTS CoAxial web
connection is located here. From this html, the
perl script is acessed. This html can be used as a blueprint for creating
other interactive ArcView-web links, changing the path and name to your
specific perl script as well as other layout modifications.
The perl script is available here
for downloading. This perl script
can also be modified for other web connections by changing the path and
filename to your specific project which will be used for web access.
.

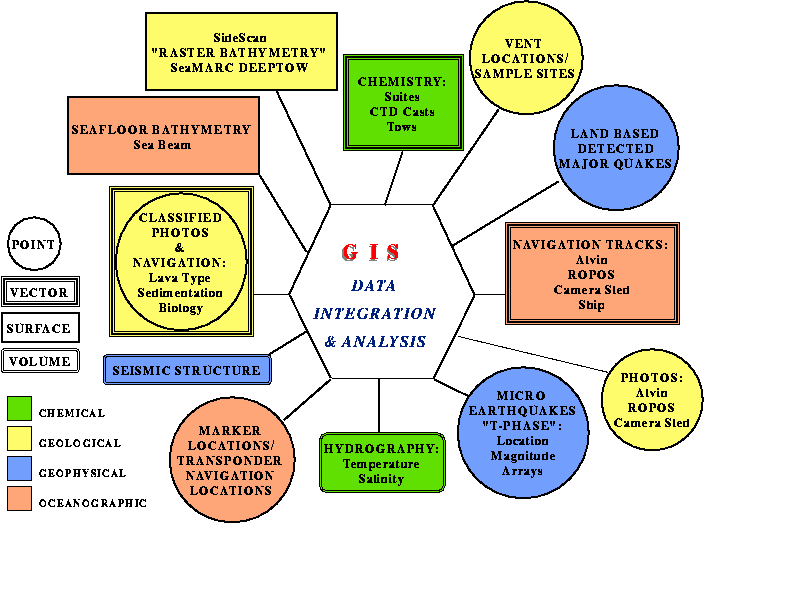

Figure 1. Multidisciplinary data sets of the VENTS Program integrated
through GIS.
Figure 2a-c. The Vents Program Scientific Information Model.

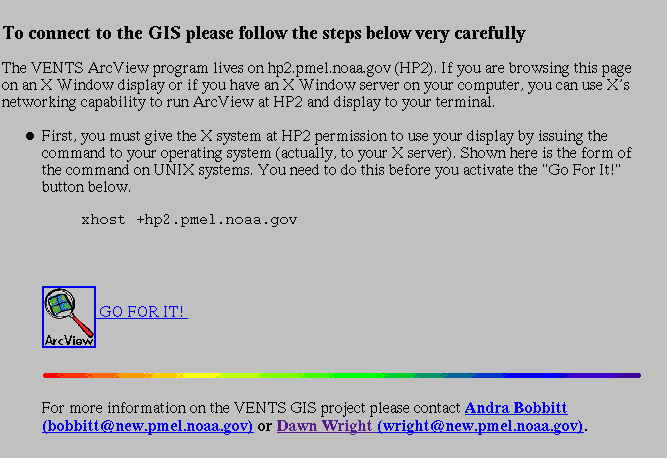

Figure 3. Initial WEB page encountered by users attempting to access the
interactive ArcView connection. The purpose of this page is to inform
the user the connection requires the guests machine to recognize the host
machine.

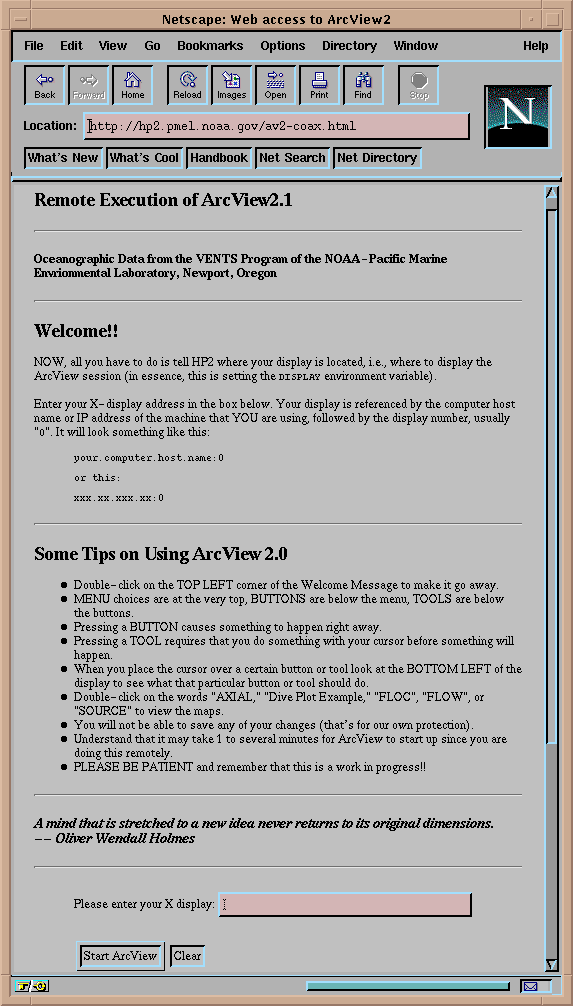

Figure 4. Second WEB page requires the user's IP address for proper
transmission of the display.

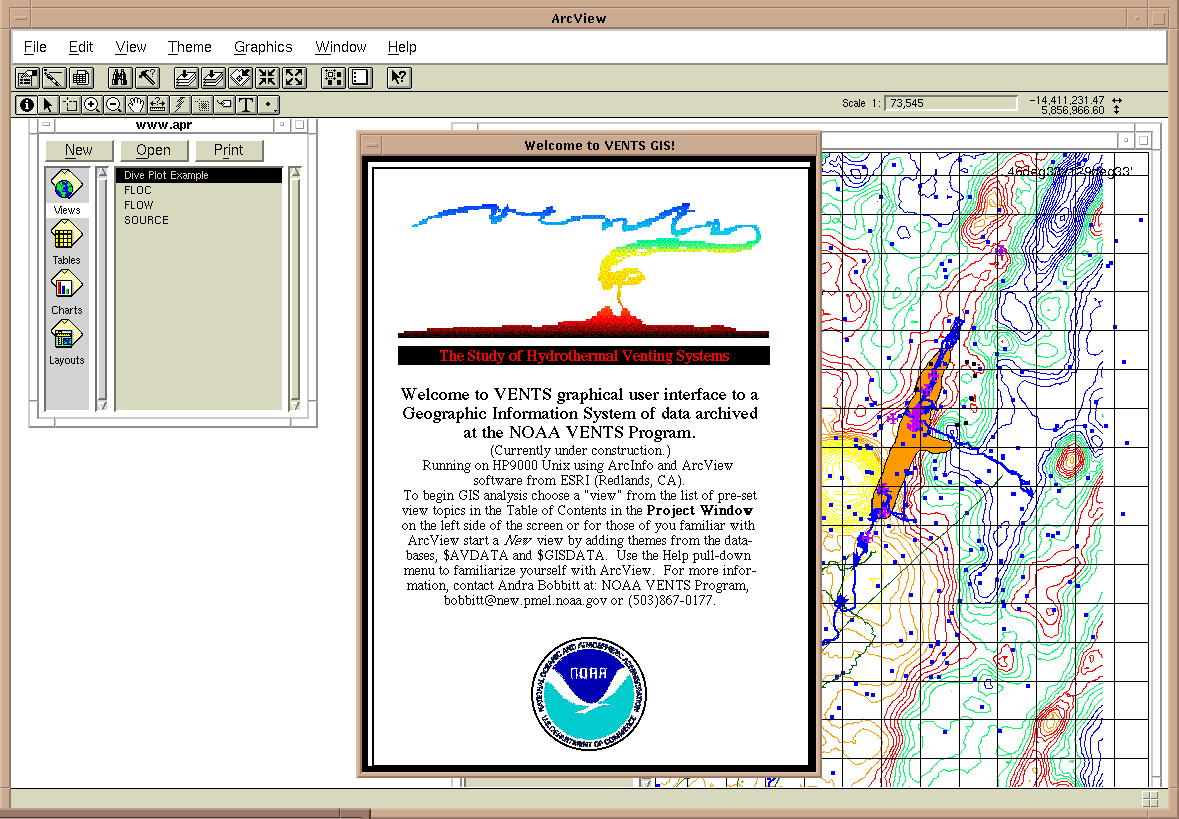

Figure 5. If prior steps required by user were successful, this is the
initial ArcView project display viewed by the user.
Wright, D.J., Fox, C.G., Bobbitt, A.M., A scientific information model for deepsea mapping and sampling (web link), Marine Geodesy, in press, 1996.
