The U.S. Army Topographic Engineering Center (TEC) is investigating semi-automated methods to extract roads from scanned color topographic maps. The first step in this process is to extract a preliminary road network using a commercial software package that applies a neural network approach. This results in a raster file containing a rough road network together with numerous non-road artifacts such as speckles, sporadic text, etc.. Knowledge-based rules that use geometric descriptors and compactness measures related to the linear nature of roads were written by TEC using ArcInfo's Arc Macro Language (AML). These rules are used to eliminate the artifacts and retain the roads. The resulting road network serves as a vector transportation layer suitable for use in a GIS.

_________________________________________________________________________________

1. INTRODUCTION

Data used in a Geographic Information System (GIS) commonly consists of various attributed vector data layers. Of the many possible layers, the transportation layer is frequently one of the most significant thematic data layers in many GIS's. Multiple sources of digital vector transportation layers currently exist for the United States. Nationwide road coverage exists in the U.S. Census Bureau's TIGER files, and U.S.G.S Digital Line Graphs (DLG) at a scale of approximately 1:100,000. Private vendors also market custom made vector transportation layers at larger scales. These layers exist primarily for metropolitan areas only.

However, this type of data is not available for many areas of the world or at scales required for certain types of analyses. Global digital coverage of roads is provided by the National Imagery and Mapping Agency's (NIMA) Digital Chart of the World (DCW) at a scale of 1:1,000,000. Vector transportation layers at intermediate scales of 1:250,000, or at larger scales of 1:50,000, do not exist over large portions of the world. These scales are required to support many military operations.

2. OBJECTIVES

In order to meet military requirements, the Army is faced with the need to rapidly build a GIS database containing roads over an area of interest at a scale greater than 1:1.000.000. The U.S. Army Corps of Engineers Topographic Engineering Center (TEC) is working on this problem as part of its internal Digital Terrain Data Generation (DTDG) research effort. The traditional approach to meet this need is to manually digitize and attribute roads from existing hardcopy maps or imagery. However, this is time consuming and labor intensive. Semi-automated and automated methods are required to rapidly produce the required data. Strictly automated approaches to extract roads from remotely sensed imagery show promise, but are still relatively immature.

TEC has built a prototype of a semi-automated method to identify potential roads on scanned color topographic maps, isolate them, and then vectorize the resulting road network. This method is capable of taking advantage of the following:

• Roads on a map have consistent symbology. Major roads tend to have a constant color, red, and road type is indicated by line thickness. Major roads tend to be thicker than minor roads. Some minor roads are also symbolized as red dashes with constant thickness and spacing.
• Existence of large numbers of color maps with roads. Although the number of vector transportation data layers at intermediate or large scale may be few, the number of maps with this information is many. For example, NIMA 1:250,000 Joint Operations Graphics (JOGS) and 1:50,000 Topographic Line Maps (TLMs) exist for many areas of the world, and they contain substantial road information.
• Improvements in scanning technology. Color scanners are faster and result in a higher quality output then in the past. This is important if large quantities of maps must be scanned.
• Advancements in color separation technology. No longer is color separation based strictly on crude clustering approaches (K-means, ISODATA) or manual supervised approaches. Developments in the area of neural networks, as applied to color separation, provide a more robust classification than the more traditional methods.
• Faster workstations that facilitate raster processing. Many raster processing functions are extremely computationally intensive. Faster workstations make it more viable to perform these functions in a more reasonable amount of time than previously possible.
• Enhanced raster processing capabilities. Raster functions provided by earlier versions of commercial software packages were only capable of operating on individual cells. Those functions are not capable of performing the map parsing required to extract roads from digital maps. Advanced raster tools that treat connected cells as individual entities or regions facilitate this process. A scripting language must also be available if the process is to be automated to any extent.

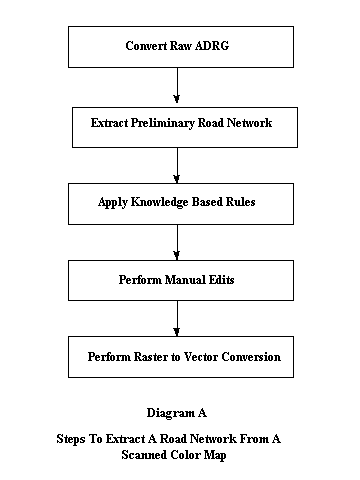

3. METHODOLOGY

Digital color map products distributed by NIMA called Arc Digitized Raster Graphics (ADRGs) are being used as input to this map parsing procedure. ADRGs are created at NIMA by scanning either a paper JOG or TLM. These products are scanned at 240 Dots Per Inch (DPI) and are georeferenced prior to distribution. This makes them more desirable than scanning a paper map, which would then have to be manually georeferenced. JOG and TLM ADRGs are available for approximately 30% of the world.

It should be noted that while ADRGs were used as input in the developed method, the principles described in this paper apply to any color map that is scanned and then subsequently georeferenced. The map parsing steps used to extract a road network from a digital color map are outlined in Diagram A.

B) Extract preliminary road network. Lockheed Martin's Autographics software is a commercial automated feature extraction program used to create raster geographic databases from hardcopy map sources [1]. Autographics accepts a SunRaster raster file as input. Input color map files are usually 24 bits per pixel, 8 bits for each color. Once the SunRaster file is imported, the user manually trains the software's neural network to recognize various thematic categories by identifying representative pixels from each category to be classified. Once the training is complete, the image is automatically classified based on the manually identified training pixels. Output from this process is an 8-bit SunRaster file. Output files can contain multiple thematic layers, or layers can be broken apart and stored as separate raster files. For example, it is possible to output roads and contours in two separate files. For our purposes the output is a SunRaster bit map containing a preliminary road network .

C) Apply knowledge-based rules. The road bit map output from the Autographics software is imported into ArcInfo using the GRID IMAGEGRID command. The World File created in Step A is used to georeference the new grid to the same coordinate system as the original ADRG.

The preliminary road bit map contains numerous non-road artifacts such as speckles, sporadic text, etc. This bit map is processed using an ArcInfo AML written by TEC to eliminate most of the artifacts and yet retain the road. This AML uses knowledge-based rules that apply GRID and ARC functions together with identified geometric road descriptors and compactness measures. This AML is discussed in more detail later in the paper.

D) Perform manual editing. Despite the best efforts of the postprocessing AML, non-road artifacts frequently remain. ArcInfo's ArcScan is used to eliminate noise that may still exist and to connect roads that may be disjoint.

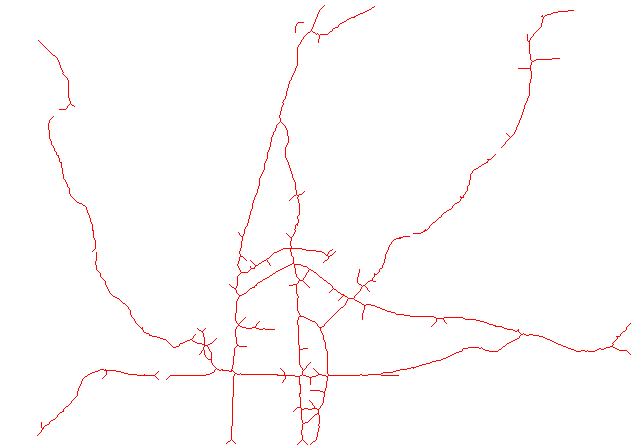

E) Perform raster to vector conversion. Prior to vectorization, the grid road network is thinned using the THIN function. The remaining grid is now ready for vectorization. The ArcInfo GRIDLINE function is used to accomplish the vectorization. Once the roads are vectorized, they can be manually attributed.

Applying Knowledge-Based Rules -- A Detailed Description

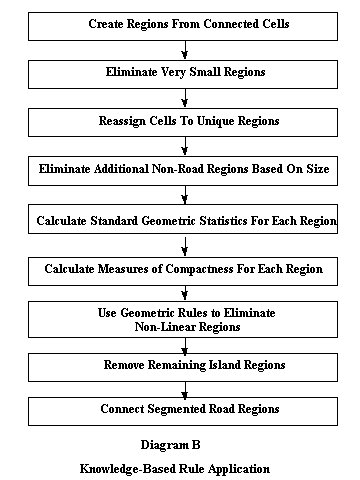

As introduced in Step C above, knowledge-based rules were developed to refine the preliminary road network identified by the Autographics software. These rules are a combination of ArcInfo ARC commands and GRID functions together with geometric road descriptors and compactness measures. The parameters used in the formulation of the rules were obtained by interactive query of the original and intermediate grids used in this step. The rules were refined by application to multiple data sets. The substeps involved in the knowledge-based rule application are outlined in Diagram B.

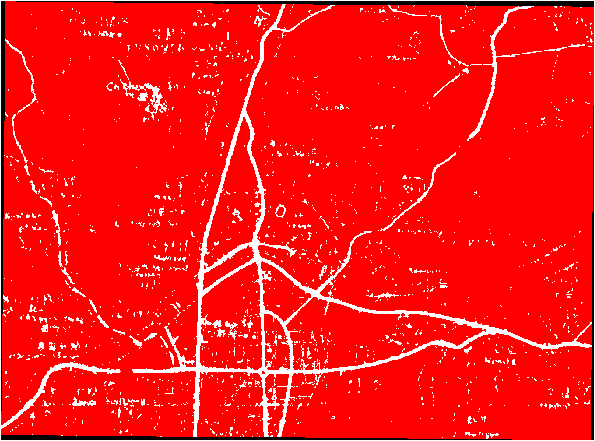

a) Create regions from connected cells. Diagram C shows the grid output from the Autographics software. In addition to the desired road network, the gird contains noise that resulted from the classification process. The REGIONGROUP command is used to assign cells to unique regions based on their value as output from Autographics. Because each region is assigned a unique ID, even small clumps of cells (noise) are considered to be a separate region and are assigned a unique ID, as seen in Diagram D.


Diagram C Preliminary Road Network Output From Autographics

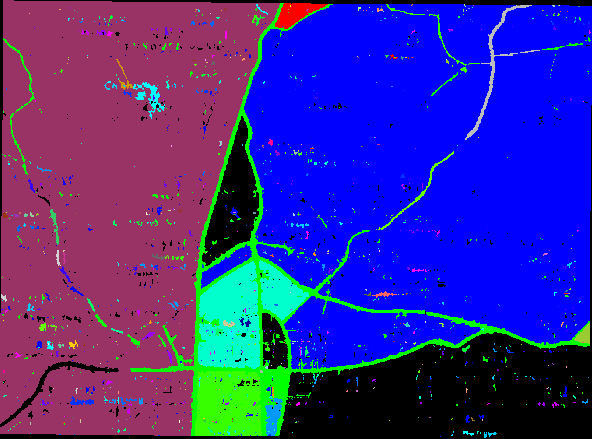

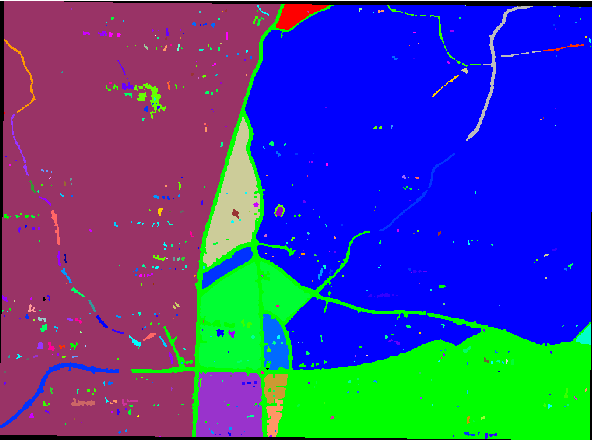

Diagram D Road Regions Identified Using REGIONGROUP Function

b) Eliminate very small regions. The BOUNDARYCLEAN function is used to eliminate very small regions within larger regions. This is useful because holes (noise) sometimes exist within large road regions. If these holes are left within the road regions, they can cause adverse effects during the raster-to-vector conversion process. For example, if the hole is too big, the vector may be split in two in order to go around the hole. The two vectors would then be merged after bypassing the hole. It may be necessary to run the BOUNDARYCLEAN function several times to produce the desired result [2]. Diagram E shows the result of two passes of the BOUNDARYCLEAN function.



Diagram E Eliminate Very Small Road Regions Using BOUNDARYCLEAN Function

c) Reassign cells to unique regions. Because many regions are eliminated as a result of BOUNDARYCLEAN, it is useful to assign new IDs to the remaining regions by applying REGIONGROUP again.

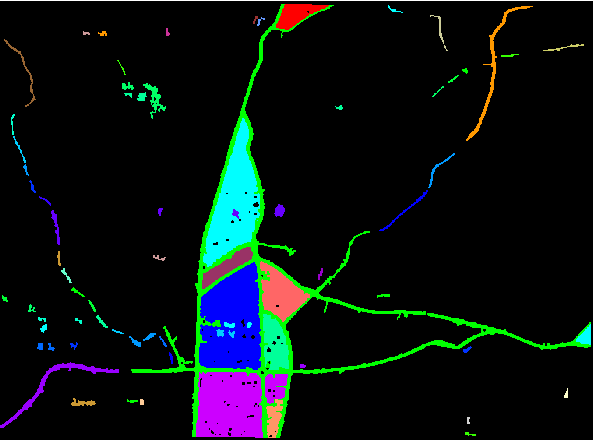

d) Eliminate additional non-road regions based on size. Based on an interactive query of the grid resulting from the previous step, it was determined that the size of road features tends to fall between 30 and 100,000 cells. Regions equal to or less than 30 cells are most likely noise but are too large to be eliminated by the BOUNDARYCLEAN function. Regions equal to or greater than 100,000 cells belong to the background and not to road features. The CON function is used to assign a NODATA value to those regions greater than 30 cells and less than 100,000 cells.

This range of values for NODATA appears to apply to both JOGs and TLMs scanned at 240 DPI. If these same maps were scanned at a higher resolution, for example 1000 DPI, then the lower and upper bounds would increase in number of cells. This is because regions from a map scanned at 1000 DPI contain more cells than regions scanned at 240 DPI. Thus, the lower and upper bounds must increase as well. In addition to further eliminating noise and background regions, this step also makes the following steps run faster. Diagram F shows the result of building new regions and then subsequently eliminating regions greater than 30 and less then 100,000 cells.



Diagram F Eliminate Additional Small Road Regions Using CON Function

e) Calculate standard geometric statistics for each region. In order to apply rules based on the linear characteristic of roads, geometric statistics related to each region in the grid must be obtained. The ZONALGEOMETRY function is applied to compute the required geometric descriptors. Output from this function is an INFO table containing area, perimeter, thickness, x-centroid, y-centroid, length of major axis, length of minor axis and orientation angle for each region. The JOINITEM command in ArcInfo is used to join the INFO table containing the geometric statistics to the Value Attribute Table (.VAT) of the region.

f) Calculate measures of compactness for each region. These measures use the geometric statistics, calculated in the previous step, for each region. Because roads are linear, not compact, measures of compactness will be used in rules that eliminate features if they are compact (non-linear). The two measures of region compactness used in this method are:

Compact1 = Length of Major Axis / Thickness

Compact2 = (4*Area) /(3.14*Diameter^2)

Compact1 results in a higher value the more linear the region. A large major axis divided by a small thickness tends to indicate a linear feature. Generally, Compact1 works well, but it has difficulty when a region that really is a road sprawls across large areas of the map in a curvilinear manner (not straight). In situations like this, the Length of Major Axis may be misleading because the length will be based on a straight line distance.

Compact2 results in a lower value the more linear the region. A detailed description of this measure can be found in Ebdon [3].

g) Use geometric rules to eliminate non-linear regions. Based on an interactive query of the resulting compactness measures, rules were developed that preserve road features and eliminate non-road features. As applied to test cases, results of these rules appear consistent from sheet to sheet within a series. The rules are as follows:

Rule 1

If Compact1 is greater than 2 and Compact2 is less than 1, in almost all cases the region is linear. If the region is a road and it is sprawling over a large portion of the map, Compact2 may in fact misclassify that region as non-road. To insure that major roads are not inadvertently removed, regions containing more than 500 cells are retained.


If (Compact1 > 2) and (Compact2 < 1 or region > 500 Cells)
outgrid = 1 (road)
else
outgrid = NODATA
endif

Rule 2

For those regions that passed the compactness tests, they are tested to see if they fall within a minimum and maximum thickness designated for roads. Any regions that fall below the minimum thickness or above the maximum thickness are eliminated.

Thickness is defined as the radius (in cell units) of the largest circle that can be drawn inside a region. In the rule below, the variables %lowthick% and %highthick% indicate the minimum and maximum thickness for a region to be designated a road. In the case of a TLM with cell size of 0.162 decimal seconds, the minimum thickness is 0.2592 decimal seconds and the maximum thickness is 2 decimal seconds. In terms of number of cells, the minimum thickness is a 2-cell radius and the maximum thickness is a 12-cell radius.

If (outgrid == 1) and (thickness > %lowthick% and
thickness < %highthick%)
rule_grid = 1 (road)
else
rule_grid = NODATA
endif

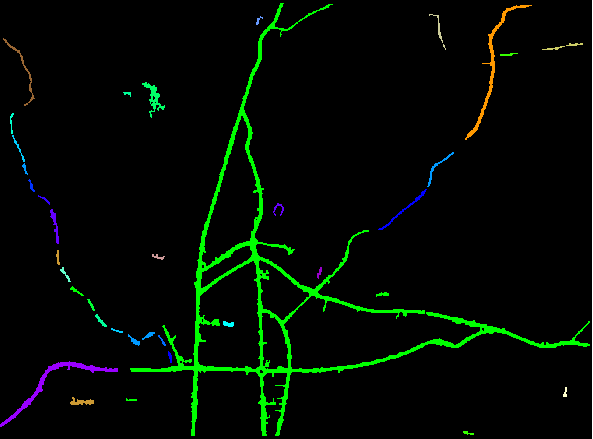

Diagram G shows the results of applying these rules.


Diagram G Road Network Resulting From Geometric Rules

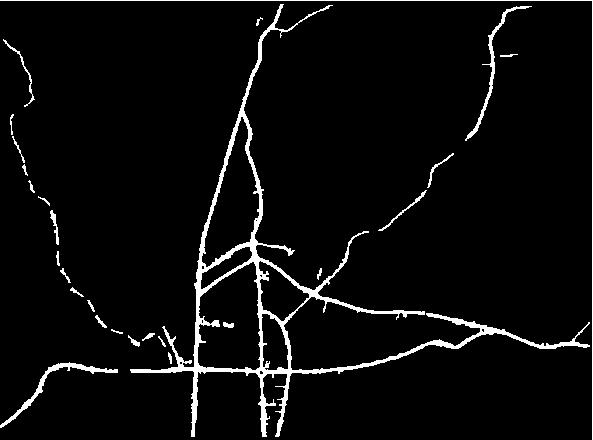

h) Remove remaining island regions. Despite the use of filters and geometric tests, there are still regions that exist that are not roads. If these are single linear artifacts totally isolated from other regions and less than 4000 cells they are eliminated. By interactive query of the grid, it was determined that regions less than 4000 cells represent noise, not roads. The results of removing island regions are shown in Diagram H. The following rules were developed to remove these regions:


• Determine proximity of road regions to other regions. A 21 by 21 FOCALVARIETY kernel is run over the region grid to see if there are any other regions in the immediate area. The output is a grid called Variety that for each cell lists the number of different regions that are within a 21 by 21 rectangular window.
• Assign proximity value to individual cells. From Variety, create a bit map named bit_grid, where any road cell that has another road cell within a 21 by 21 window will be assigned a value of 1 as follows:


if (variety ge 1)
bit_grid = 1
else
bit_grid = NODATA
endif


• Create new regions from bit_grid. This will assign unique IDs to any group of connected cells. In this case, all cells with a value of 1 that are connected will be assigned a unique ID.
• Remove isolated regions that are less than 4000 cells using CON function.





Diagram H Result of Removing "Island" Road Regions

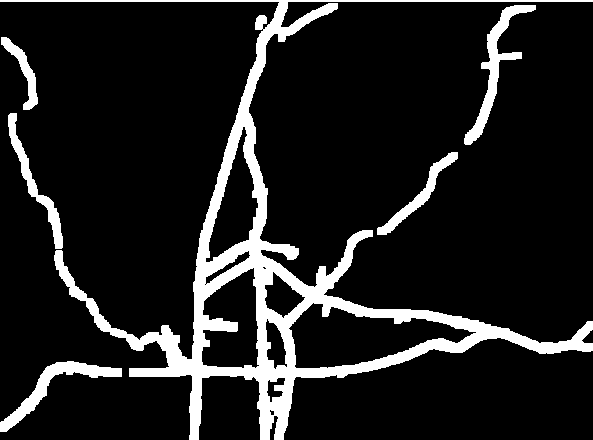

i) Connect segmented road regions.In order to be used for analysis, all roads in the final vector coverage must be connected lines, regardless of their representation on the paper map or ADRG. The FOCALMAX function, with a 15 by 15 window, is used to expand the remaining road regions in order to join segmented road regions prior to vectorization. Thus all road regions are expanded by 7 cells in each direction. The size of the window was determined by interactive query of the road regions up to this point. Diagram I shows the effects of expanding the regions to join the road segments.

Even after running the FOCALMAX function not all of the segments are joined. The 15 by 15 window was designed to be large enough to expand road segments representing dashed lines. Those road segments that are not joined exceed the 15 by 15 window and are further apart than dashed road segments normally are.



Diagram I Region Expansion To Join Road Segments

This map parsing prototype was tested on several ADRGs with varying road network densities. A visual comparison of the resulting road networks showed a favorable correspondence with the original ADRG roads. Diagram J shows a portion of the vector road network that resulted from application of this method on one TLM ADRG having an extensive road network. This particular grid was vectorized without going through the manual edit phase to illustrate why the manual edit phase is required. Note that gaps and spurs do exist.

The experimental method was applied to a representative TLM ADRG, containing 5561 rows and 6673 columns. The following are the time estimates for processing the significant portions of the map parsing operation on a SunSpark 20:

• Train Autographics neural network on the ADRG: Approximately ½ hour.
• Classify the ADRG using Autographics: Approximately 1.5 hours.
• Apply knowledge-based rules: 2.5 - 3 hours.
• Manually edit using ArcScan: 1.5 hours.
• Vectorize: 5 minutes.

Detailed time comparisons have not yet been performed to see if the semi-automated approach is faster than manual digitizing. However, it should be noted that the human operator's portion of the time spent in the semi-automated approach is proportionally small compared to the proportion of the time that the computer is working.

5. RECOMMENDATIONS FOR FUTURE RESEARCH

In addition to remaining work to improve the road extraction process, other areas of future research include:

• Automatic attribution of extracted road features. It appears likely that some level of automatic attribution is possible. Because road types vary by line thickness, geometric descriptors for the road regions, such as thickness, could prove useful in attribution. It is also possible that dashed roads can be attributed prior to joining them together, because dashes have unique thickness and length.
• Process features in the vector domain vs. the raster domain. It is possible that some of the procedures outlined in this paper could be done more quickly and efficiently in the vector domain. These procedures need to be identified and implemented.
• Apply the lessons learned from extracting roads to extracting other features. Roads were initially chosen because of their importance and their unique representation on a map. Lessons learned in this process could be extended to other features such as drainage and urban areas.

6. CONCLUSIONS

The combined success of the Lockheed Martin Autographics software and the TEC-developed knowledge-based rules provide a proof of concept for the semi-automated extraction of roads from scanned maps. Even though the commercial Autographics software package is capable of providing a preliminary road network, there is still too much noise to be useful as a GIS vector data layer. The use of TEC's raster rules utilizing ArcInfo functions together with standard geometric descriptors and compactness measures significantly improves the resulting road network. Early indications are that the semi-automated map parsing approach presented in this paper may help the Army meet it's goal of rapid data base production.

REFERENCES

1. Autographics User's Guide (Lockheed Martin, 1995), pp. 3-4.
2. Cell-based Modeling with GRID (Esri, 1994), pp. 310-328.
3. Statistics In Geography (David Ebdon, 1981), pp. 119-120.

Brian Graff, Cartographer
U.S. Army Topographic Engineering Center
USATEC-TD-TD
7701 Telegraph Road
Alexandria, VA 22315-3864
Phone: 703-428-6071
FAX: 703-428-6176
E-mail: bgraff@tec.army.mil
