W. Thomas Ofenstein and Kim A. Rauenzahn
Remote Sensing markets, including precision agriculture, resource management, environmental monitoring, forestry and other related markets, require special-purpose tools for the display and analysis of relevant data. TASC has developed a spatial data viewer and analysis tool using MapObjects that enables a user to display multi-spectral imagery overlaid by vector data. The viewer was developed primarily with Visual Basic with some C++ to meet performance-critical requirements.
Over the past two years TASC has been developing a remote sensing capability with application to precision agriculture, resource management, environmental monitoring, forestry and other related markets. Recently TASC announced an information service, emerge(tm), which provides value-added information products based on high-resolution, registered, multi-spectral mosaicked imagery. For the emerge service, this imagery has been enhanced for precision agriculture use. A principal output of the emerge service is a high-resolution mosaicked image of a grower's field. While growers are supplied hardcopy prints of the imagery, it was important to customers to have the ability to view the full resolution data with vector data layers (e.g., roads), providing contextual background information. While some growers already have access to agriculture-specific mapping tools, such as FarmWorks or AgLink, most growers have no capability for displaying the image data. The need to supply the growers with mapping capabilities for viewing our imagery has led to the development of the MapObjects-based emergeView.
The basic requirements and goals for this product included:
While most of the technical requirements of the product could be achieved using Esri's ArcView product, the distribution costs for hundreds of potential customers led us to select MapObjects and Visual Basic as the development environment. This choice also gave us a flexible and powerful prototyping and development environment. As a starting point for the development, TASC selected the moView sample application as the basis for the emergeView graphical user environment.

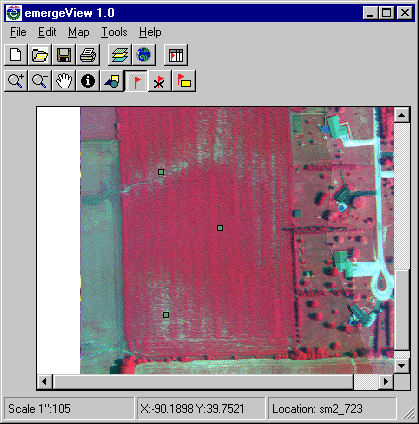

The basic tool, as depicted below, provides the following capabilities:

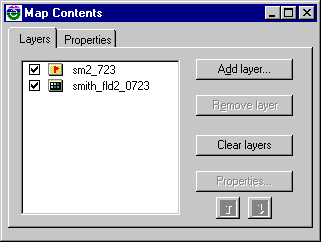

The map layer "table of contents" is displayed in the Map Contents window as shown in the following picture. The Map Contents window provides the capabilities for adding new map and image layers, removing layers, defining the display order of layers, and turning layers off and on. The Properties button displays the Layer Properties window, which provides three rendering capabilities for vector data: single symbol, value map, and class breaks. A major enhancement of emergeView over moView is that the rendering properties for a layer are persistent for the emergeView session, and the Layer Properties window is displayed with the current rendering for the selected map layer.

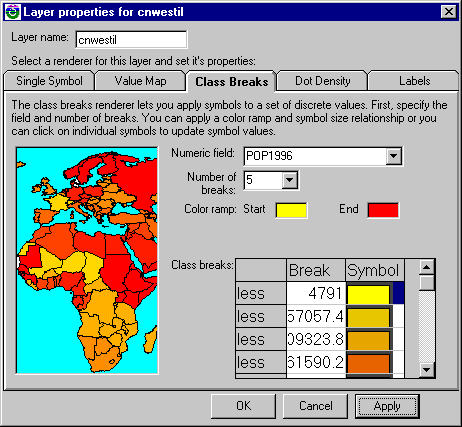

An example of the Map Layer Properties window is shown below. The design of the tool is an enhanced version of the moView sample application. It has been upgraded to restore the symbolization of a previously symbolized map layer. The example below shows a class breaks definition. Some of the techniques for preserving and restoring the rendering are discussed later in the paper.
Special functionality was added to emergeView to allow customers to analyze high-resolution field imagery and tag crop scouting information to locations on the image. This capability uses a special map layer called a location layer, which is a specially attributed point shape file. A user can peruse images for locations of interest, tag a location and related textual information in the shape file, and print a report consisting of the locations and text data. The report can be used to locate these sites in the field with a GPS receiver. The last three tools on the main window toolbar and the last button on the button bar provide this functionality. The location layer capabilities include:

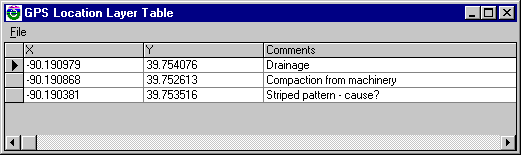

Two examples of textual outputs of the location tagging capability are shown below. The first example depicts the tabular view. Selecting a row in the table blinks the corresponding feature in the map display.

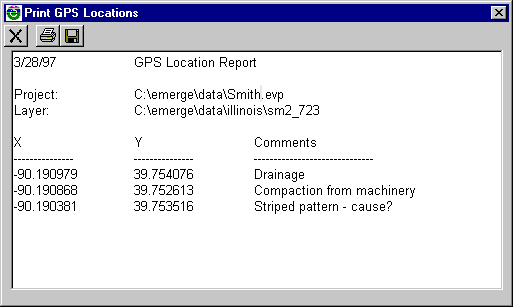

The second picture shows the textual version of location tagging. The information displayed in this window can be printed and used for scouting in the field. The geographic coordinates enable the grower or scout, using GPS, to go to the precise location identified by the printout.
Another important feature of emergeView is concept of a project file. The emergeView project file is similar in concept to the ArcView project file in that the user can save the current state of the session, and then restore that session at a later time. This includes not only the definition of the layers, but also the definition of the layer renderings, and any graphics or annotation added to the map. Some of the techniques for supporting project files are discussed below.
The complete design of emergeView is too extensive to be completely covered in this paper. Instead the following three selected design components will be discussed:
Early in the emergeproject, the project team determined that it was important to display our imagery in a projection system that could provide real ground measurements. To satisfy this, we decided to register our image products to the UTM projection. Consequently emergeView had to display image data in UTM coordinates. However, because growers work with GPS, it was also important to be able to display and tag data with geographic coordinates. Unlike ArcView, MapObjects does not support dynamic coordinate projection capabilities. Therefore, input image and vector data had to be in UTM coordinates, but a dynamic UTM-to-geographic conversion had to take place automatically as the cursor was moved in the map display area. TASC developed a UTM-to-geographic conversion utility in C++ as a Dynamic Link Library (DLL). We chose to do this conversion in C++ rather that Visual Basic because of the performance requirements of converting coordinates automatically as the cursor was moved (the MouseMove event).
An important feature of any data display system is the ability to establish customized environmental settings (such as symbolization) within one session, save that session, and then restore that session at a later date. ArcView supports this concept with the ArcView project (.apr) file, emergeView similarly supports this with the emergeView (.evp) project file.
The following code sample illustrates the output of map and image layer information to the project file.
' output the layer information
Dim theLayers As MapObjects.Layers
Set theLayers = mapDisp.Layers
Write #fileNum, theLayers.Count
' output the layer information so that the display order is preserved on input
Dim i As Integer
For i = (theLayers.Count - 1) To 0 Step -1
Dim ndx As Integer
ndx = theLayers(i).Tag
Dim aLayerInfo As LayerInfo
' get the layer information for this layer
Set aLayerInfo = colLayers(ndx)
' output the layer path and file name
Write #fileNum, aLayerInfo.srcPath
Write #fileNum, aLayerInfo.srcFile
' output the layer type (image or map)
Write #fileNum, aLayerInfo.layerType
' output the layer visibility property
Write #fileNum, theLayers(i).Visible
' if the layer is a map layer, output the rendering information
If (theLayers(i).layerType = moMapLayer) Then
Write #fileNum, aLayerInfo.rendererStyle
' output renderer-specific information
Select Case aLayerInfo.rendererStyle
Case mvSSingleSymbol ' single symbol renderer
Call saveSingleSymbol(theLayers(i).symbol, fileNum)
Case mvSClassBreaks ' class breaks renderer
Call saveClassBreaks(theLayers(i).Renderer, fileNum)
Case mvSValueMap ' value map renderer
call saveValueMap(theLayers(i).Renderer, fileNum)
End Select
End If
Next i
An important part of generating the project file is maintaining information about each layer, including the type (map or image), the source, and the rendering style. This information has been encapsulated into the LayerInfo class.
The srcPath and srcFile components completely define the full path name of an image or map layer. This information must be captured when the layer is added to the map because it cannot be derived from the MO Map object after it has been added. The following code sample demonstrates the regeneration of the MapObjects layers from the project file.
' get the layers
Dim cntLayers As Integer
Input #fileNum, cntLayers
Dim i As Integer
For i = 1 To cntLayers
Dim fileName As String
Dim filePath As String
Input #fileNum, filePath
Input #fileNum, fileName
Dim layerType As Integer
Input #fileNum, layerType
Dim vis As Boolean
Input #fileNum, vis
' if this is a map layer, get the renderer inputs
If (layerType = moMapLayer) Then
If (Not addShapeLayer(filePath, fileName)) Then
Close #fileNum
On Error GoTo 0
Exit Sub
End If
mapDisp.Layers(0).Visible = vis
Dim rendererStyle As String
Input #fileNum, rendererStyle
Dim ndx As Integer
ndx = mapDisp.Layers(0).Tag
colLayers(ndx).rendererStyle = rendererStyle
' get the renderer-specific symbolization
Select Case rendererStyle
' single symbol
Case mvSSingleSymbol
Set mapDisp.Layers(0).Renderer = Nothing
Call openSingleSymbol(mapDisp.Layers(0).symbol, fileNum)
Case mvSClassBreaks
Set mapDisp.Layers(0).Renderer = New MapObjects.ClassBreaksRenderer
Call openClassBreaks(mapDisp.Layers(0).Renderer, fileNum)
Case mvSValueMap
Set mapDisp.Layers(0).Renderer = New MapObjects.ValueMapRenderer
Call openValueMap(mapDisp.Layers(0).Renderer, fileNum)
End Select
Else ' image layer
If (Not addImageLayer(filePath, fileName)) Then
Close #fileNum
On Error GoTo 0
Exit Sub
End If
mapDisp.Layers(0).Visible = vis
End If
Next i
The following code sample is the subroutine saveSingleSymbol referenced above. This subroutine outputs the rendering information for a layer symbolized with a single symbol.
Sub saveSingleSymbol(aSymbol As MapObjects.symbol, fileNum As Integer)
' output all of the characteristics of the symbol
With aSymbol
' output the basic symbol characteristics
Write #fileNum, .SymbolType
Write #fileNum, .color
Write #fileNum, .Size
Write #fileNum, .style
' output point symbol specific characteristics
If (.SymbolType = moPointSymbol) Then
With .Font
Write #fileNum, .Bold
Write #fileNum, .Italic
Write #fileNum, .name
Write #fileNum, .Underline
End With
Write #fileNum, .CharacterIndex
Write #fileNum, .Rotation
' output fill symbol specific characteristics
ElseIf (.SymbolType = moFillSymbol) Then
Write #fileNum, .Outline
Write #fileNum, .OutlineColor
End If
End With
End Sub
The subroutine for regenerating the single symbol renderer follows. Note that intermediate variables sVal, iVal, and bVal must be used to input data from the project file because the symbol objects do not support direct assignment through file input in Visual Basic. While this is not a major problem, it does reduce the readability of the source code.
Sub openSingleSymbol(aSymbol As MapObjects.symbol, fileNum As Integer)
' define intermediate variable for file input
Dim sVal As String
Dim lVal As Long
Dim bVal As Boolean
With aSymbol
' input general symbol characteristics
Input #fileNum, lVal
.SymbolType = lVal
Input #fileNum, lVal
.color = lVal
Input #fileNum, lVal
.Size = lVal
Input #fileNum, lVal
.style = lVal
' input point symbol specific characteristics
If (.SymbolType = moPointSymbol) Then
With .Font
Input #fileNum, bVal
.Bold = bVal
Input #fileNum, bVal
.Italic = bVal
Input #fileNum, sVal
.name = sVal
Input #fileNum, bVal
.Underline = bVal
End With
Input #fileNum, lVal
.CharacterIndex = lVal
Input #fileNum, lVal
.Rotation = lVal
' input fill symbol specific characteristics
ElseIf (.SymbolType = moFillSymbol) Then
Input #fileNum, bVal
.Outline = bVal
Input #fileNum, lVal
.OutlineColor = lVal
End If
End With
End Sub
An important enhancement to the original moView sample application was the restoration of the renderer symbology for a map layer when the Layer Properties window was invoked. This section demonstrates how emergeView accomplishes this task following examples of the saving and regeneration of the single symbol renderer in the preceding section.

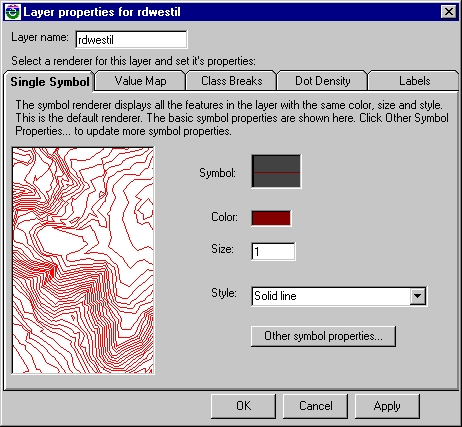

The single symbol option for a linear feature of the Layer Properties window is shown in the picture below. As depicted, the form provides the capability for the user to select a line style, line size (thickness), and line color. If this were a point symbol, the Other symbol properties button would provide further symbol definition capabilities.
The symbol initialization process for the single symbol renderer is accomplished with the following two subroutines. The first, singleSymbolInitRenderer, initializes the form and determines whether the map layer's current renderer is a single symbol renderer. If it is, then the form is initialized with the layer's current symbol; if not, then the form is initialized with a new random symbol.
Public Sub singleSymbolInitRenderer()
' hide the controls not consistent with polygon symbolization
If curFeatureType = moPolygon Then
lblSingleSize.Visible = False
txtSymbolSize.Visible = False
End If
' if this is the current renderer, restore the symbol settings
If (curRendererStyle = mvSSingleSymbol) Then
Set curSymbol = curlayer.symbol
Else
Set curSymbol = New MapObjects.symbol
End If
' initialize the list of symbol styles
Call loadStyleCombo(cboSymbolStyle)
' initialize the form with the selected symbol
Call singleSymbolCalc
End Sub
The incorporation of the selected symbol is accomplished in the singleSymbolCalc subroutine, which is largely unchanged from moView, but is included for completeness.
Public Sub singleSymbolCalc()
Dim curStyleConst As Long
picSymbolColor.BackColor = curSymbol.color
txtSymbolSize.text = curSymbol.Size
curStyleConst = curSymbol.style
' get the current style listed
Dim strStyle As String
Dim i As Integer
strStyle = translateStyleConstant(curStyleConst)
For i = 0 To (cboSymbolStyle.listCount - 1)
If (cboSymbolStyle.List(i) = strStyle) Then
cboSymbolStyle.ListIndex = i
Exit For
End If
Next i
' display the symbol
Set curDrawSymbol.symbol = curSymbol
mapDrawSymbol.TrackingLayer.refresh True
mapDrawSymbol.CopyMap 1
imgSS.Picture = Clipboard.GetData
End Sub
Private Sub mapDrawSymbol_AfterTrackingLayerDraw(ByVal hDC As Long)
' draw the symbol
curDrawSymbol.draw
End Sub
As can be seen in the above code sample, the symbol displayed in the image control is actually generated in a hidden map control and copied into the image control. The variable curDrawSymbol is an instance of the class clsDrawSymbol. This class includes a method, draw, which renders the symbol into a map control. The draw method is invoked in the map control's AfterTrackingLayerDraw event.
The emergeView development effort has produced a desktop mapping tool that can display our customized multi-spectral imagery with vector background data. Our intent was to provide a basic, inexpensive capability to those customers not currently possessing commercial desktop mapping resources. The use of MapObjects greatly aided in the success of this development.
The authors would like to thank John Sawicki and Rob Comer of TASC for their contributions to the development of emergeView. John developed the Location Layer capability and Rob developed the C++ UTM-to-geographic conversion DLL. The authors would also like to acknowledge of the contributions of Michael Zeiler of Esri, the original author of moView, for the email exchanges that helped us to understand many of the moView design concepts. emerge is a trademark of TASC, Inc.
