David Nulph, Jeff Burka, Alex Mudd
Objective: The purpose of this paper is to discuss the
methods used to develop and implement an ArcView based spatial
crime analysis system which will allow police departments to geographically
analyze incident-based data.
Background: The Criminal Division of the U.S. Department
of Justice initiated two pilot projects to implement GIS for use
in crime analysis at local police departments: Warrenton, VA and
Montgomery County, MD. The crime analysis application was first
installed at Warrenton, a very small police department, then with
some enhancements and added capabilities at the Montgomery County
Police Department (MCPD).
Application Requirements: The key requirements of the system
include an easy to use database query interface, the ability to
produce several varieties of analytical maps and reports, and
the flexibility to be installed on different systems with a minimum
of re-programming.
Technical Approach: The core application functionality
was built around Environmental Systems Research Institute's ArcView
3.0 using Avenue. Additional functionality was provided by the
ArcView Spatial Analyst extension, which allowed the rapid inclusion
of features such as hot-spot analysis and crime density surface
map generation.
To achieve all the application requirements, several additional
components were integrated into the SCAS ArcView environment:
Visual Basic forms are used to handle user interface needs and
communicate to ArcView via Dynamic Data Exchange (DDE). Report
generation capability is achieved by directly linking ArcView
to the Crystal Reports report generator engine. Database connectivity
issues are resolved by standardizing the database query mechanism
on ODBC (Open DataBase Connectivity) SQL (Structured Query Language).
The resulting application is currently in use at the two
police departments, and the Department of Justice, Criminal Division
GIS staff continues to enhance the application to optimize it
to the police departments' needs.
In 1994, the U.S. Department of Justice, Criminal Division initiated
two pilot projects to implement GIS spatial crime analysis systems
for use at the local law enforcement level. The DOJ chose two
sites for these projects, a very small police department in the
Town of Warrenton, Virginia, and the much larger police department
in Montgomery County, Maryland. With programming and application
development support from INDUS Corporation, these two GIS crime
analysis implementations are underway, with additional sites under
review. This paper will discuss the technical approach to developing
the spatial crime analysis application for the DOJ Crime Analysis
Systems Project.
The requirements of the Spatial Crime Analysis System (SCAS) are as follows:
The core functionality of SCAS was designed around Environmental System Research Institute's ArcView 3.0 product. Avenue, the ArcView development language, was used to customize and automate the application. ArcView was chosen because it runs on a desktop PC, is customizable with Avenue, and is relatively easy to use. The ArcView Spatial Analyst extension was also used to facilitate the generation of 3D surfaces which are used for hot-spot analysis. Since ArcView 3.0 has no native form menu development capabilities, form menus developed with Visual Basic were integrated into the application via Dynamic Data Exchange (DDE). The Crystal Reports report generation engine, which is included with Visual Basic, was also used to add report generation capabilities.
One of the key components of SCAS is utilization of ODBC. Almost
all SCAS external database access was implemented using ODBC.
ODBC provides a standard layer between the application and the

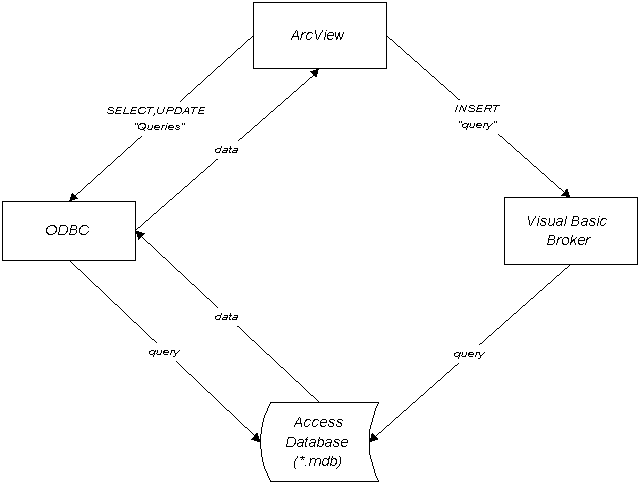

data sources (Figure 1).
ODBC is an industry standard application programming interface
which allows applications to communicate with various database
systems and even to treat some non-database files, such as spreadsheets,
as if they were database tables. ODBC is supported on numerous
platforms, and supports numerous database vendors. The ODBC Application
Programmers Interface (API) allows a programmer to communicate
through the Structured Query Language (SQL) with any database
for which there is an ODBC driver - effectively insulating the
programmer from vendor-specific database peculiarities such as
database file formats and query mechanics.
ArcView supports ODBC both at the standard interface level as
well as via Avenue. Users may open a connection to an external
database and then interact with that database in numerous ways,
whether inserting new records into the database, updating existing
records, or using a query to bring records from the database into
an ArcView VTab. All interaction with the external database is
done with queries written in SQL.
There are several advantages to using ODBC for virtually
all queries of the incident database. The main advantage is simply
that data does not need to be exported from the police department's
database in order to be used with ArcView. The department maintains
its existing database with entry, query, and reporting features,
while SCAS is able to seamlessly access the same database to fulfill
its data needs. As a matter of practicality, the geocoded point
data is also stored as part of the database. ArcView is able to
create a point shapefile directly from VTabs generated by ODBC
queries of the database, using the XYName subclass of the SrcName
class.
Theoretically, having the ODBC layer between SCAS and the database
will permit the application to access data from a wide variety
of DataBase Management Systems (DBMS) systems (currently DataFlex
and MS Access, and Oracle in the future), with minimal modifications
to the application itself, making the product more portable among
police departments. The modifications required for a new site
will primarily address differences in database structure such
as field names and table relationships.
The core interface elements for many of the analysis tools were
developed using Microsoft Visual Basic 4.0. A series of Visual
Basic forms perform various user input and data gathering tasks.
The forms are invoked by the ArcView application using a simple
'system.execute' request to the form executable file. Almost all
of the forms are designed to subsequently pass information back
to ArcView, and this is accomplished with a DDE link back to the
ArcView session as a client. An argument is passed with the DDE
request in the form of a pipe delimited text string. The receiving
ArcView script then parses the argument string, and proceeds with
the procedure at hand.
A very useful component used in several of the Visual Basic forms
is the TreeView custom control provided with the Visual Basic
distribution. This control was used extensively in developing

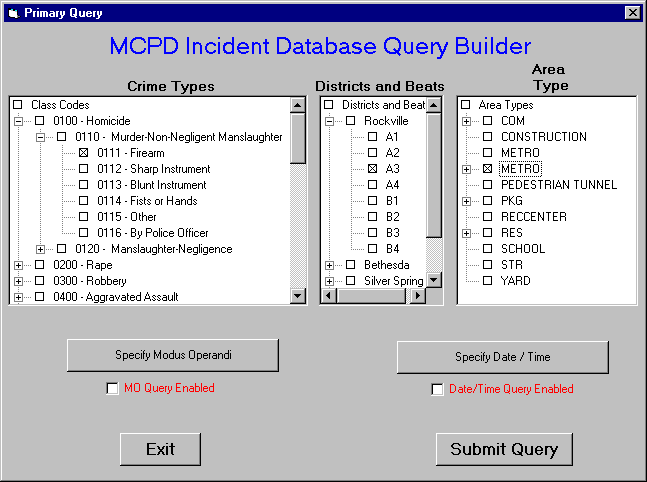

the Primary Database Query form (Figure 2)
. This control permits the construction of hierarchical pick lists,
greatly simplifying tasks such as the selection of crime classification
codes.
In addition, components from the Crescent QuickPak Professional,
published by Progress Software, are utilized to add functionality
such as calendars and enhanced combo boxes, as well as enhanced
string manipulation and other programmer-level functions.
Visual Basic was primarily used to develop the user interface
forms and dialog boxes for SCAS, but Visual Basic was also used
to create two programs which have nothing to do with the user
interface. Both of these programs address functions not
available in the core ArcView API, but nonetheless are required
to perform important functions for SCAS to operate properly.
The first of these is the "sizedaemon." SCAS uses a
great deal of the screen, even on a 1024x768 screen size. When
running in a lower resolution, it is desirable to move and resize
a number of aspects of the project. While it is possible to use
the application object to determine the ArcView window size, there
is no way to actually trap the change in window size and thereby
run an update script. While an update script might have been attached
to an object capable of storing such a property, there was no
way to guarantee that the update script would be run each time
the user changed the ArcView main window size.
The size daemon is a very small Visual Basic program which sits
quietly in the background. Every few seconds, the daemon uses
a Windows API call to poll the main ArcView application window
size to see if it has changed. If so, the size daemon notifies
ArcView that its size has changed via DDE, telling ArcView to
run a script which repositions a number of items in a few of the
DocGUIs and resizes certain windows as necessary. Virtually no
performance degradation has been noticed while running the size
daemon. It very quickly goes back to sleep if the ArcView window
size has not been changed; no spikes are visible in the Windows
95 CPU monitor when the size daemon is running.
The second Visual Basic program that is not used for user interface
development is a small broker which sits between ArcView and ODBC
and handles those transactions in which records are inserted into
the database (Figure 1). When the system
was first tested in a multi-user situation, with the master database
stored on a file server, there were tremendous slow-downs, large
quantities of modal warning messages, and even crashes occurring
when two users were engaged in geocoding records.
Although ArcView's ODBC capabilities are fairly good, it was discovered
that there is no way to trap errors returned from ODBC queries.
In effect, ODBC was generating errors, ArcView was noting the
error, and then warning the user - occasionally by displaying
up to 1,000 modal dialog boxes in a row. With no way to trap these
errors and deal with them via Avenue, a Visual Basic program was
written to accept the records to be inserted from ArcView and
pass them along to the database, trapping errors, repeating attempts,
and generally speeding things up for concurrent users.
The Visual Basic broker does slow performance for a single user
inserting geocodes into the database; in a 1200 record sample,
the slow-down was approximately 12%. But the improvement in multi-user
access has far outweighed the speed degradation caused by the
broker.
Another component of the Visual Basic distribution integrated
into SCAS was the Crystal Reports report generation engine. This
was necessary because SCAS required fairly sophisticated reports
to accompany the maps. To accomplish this, the Crystal Reports
Print Engine (CRPE32.DLL) is initialized from within Avenue. This
makes available to ArcView the entire suite of Crystal Reports
functions, which can then be called directly.
To generate a report, a previously prepared report form
is initialized and sent a .dbf file exported by an Avenue Script.
The report can then be previewed and sent to a printer.
As requested by the crime analysts, the report generation component
of SCAS was designed to be as generic as possible, and permit
the generation of reports independently of maps. This independence
permits SCAS to be used solely for report generation purposes,
as there are many occasions when an analyst needs only reports.
The major drawback of this system is that a previously designed
report form must be available. This restricts the tables which
can be printed, and forces a report form redesign if the database
table structure changes, particularly fieldnames.
The Microsoft help compiler was used to develop an on-line, indexed, keyword searchable help system for SCAS. Several help system Microsoft Word macros were tested, and found to be inadequate for various reasons. The Microsoft help compiler, though somewhat cumbersome, permitted all of the help functionality to be integrated relatively easily. The help file is called from within the application environment with the command 'system.execute (Winhelp "scashelp.hlp","").' A context-sensitive help link was also provided for the SCAS buttons and tools. This feature was implemented via the 'Help Topic' property of the buttons and tools. By selecting the context help button and pointing at a button or tool, the user is automatically taken to the correct topic in the help system.
The basis for most of the analytical functionality, and the default
'first step' in a crime analysis operation, is the generation
of pin-maps. These maps, an analogue to the paper maps and pushpins
that police departments have used (and still use) for simple geographic
analysis provide a very simple window into the distribution of

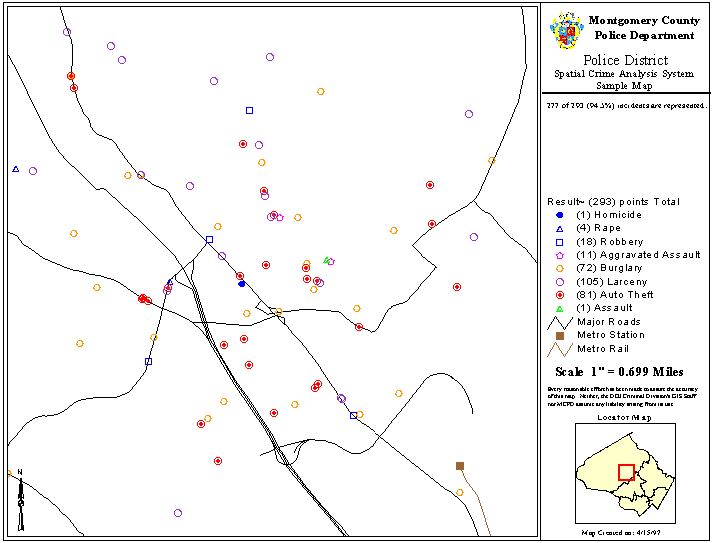

incidents in an area. The production of a pin-map with SCAS is
simple: an analyst phrases a query with the Primary Query form
(Figure 2), and submits the form
with the 'Submit Query' button. SCAS performs the query, returns
a set of records, geocodes any previously ungeocoded records and
places the resulting points on the map. The resulting map is relatively
easy to interpret, and is a good starting point for subsequent
analysis. A classification tool permits uniquely symbolizing each
point by its crime classification code (Figure 6)
As part of the pin-map generation process, a choropleth summary
can automatically be produced. This option counts the incident
points in each polygon (beat, district, ZIP, etc.) and automatically
classifies and symbolizes the polygons accordingly. The current
version of SCAS requires the user to perform normalized classifications
by area or population manually, but such functionality will be
automated in future versions of SCAS.
One of the most important functions of the system is geocoding.
Without an accurately geocoded incident database, spatial analysis
would be impossible. SCAS was developed so that most geocoding
occurs automatically and is transparent to the user. Every time
an analyst performs a query, the resulting recordset is scanned,
previously un-geocoded records are extracted, and geocoded. The
newly geocoded x, y coordinates are then stored back in the master
database. The next time a query is performed, previously geocoded
records will bypass the geocoding procedure, making the query-geocode
process much more efficient.
Unfortunately, due to several factors such as data entry errors
and an out of date street file, the geocode rate is typically
around 90%. To improve the geocode rate, a mechanism was developed
to permit the MCPD analysts to manually geocode unmatched records.
The Esri script MatchCoordinate was modified to eliminate duplicate
addresses, and to commit new x, y records back to a master geocode
table, stored in the master Access database. This tool permits
the user to pick an address from a pop-up pick list, then point
to a location on the map to assign a geocode.
Another fundamental need of the crime analysts is to be able to note trends in crime. In which areas is crime increasing? decreasing? staying the same? A 'change map' tool was created which assists analysts in performing trend analysis. The tool works by building two incident count maps by polygon, for selected time periods. The tool is designed to permit the comparison of any two independently selected periods of time. The second (later time period) map is then subtracted from the first (earlier time period) map to produce a third map which shows the increase or decrease in incidents per polygon between the two time periods.
One of the popular topics among crime analysts is hot-spot analysis.
Hot-spots are areas of high concentrations of incidents within
a police jurisdiction. There are many ways to define and analyze
hot-spots for a given set of incident locations. The method used
by SCAS is to incorporate ArcView Spatial Analyst and build a
surface of incident density for a selected set of incident points,
using the kernel function of Spatial Analyst's density surface

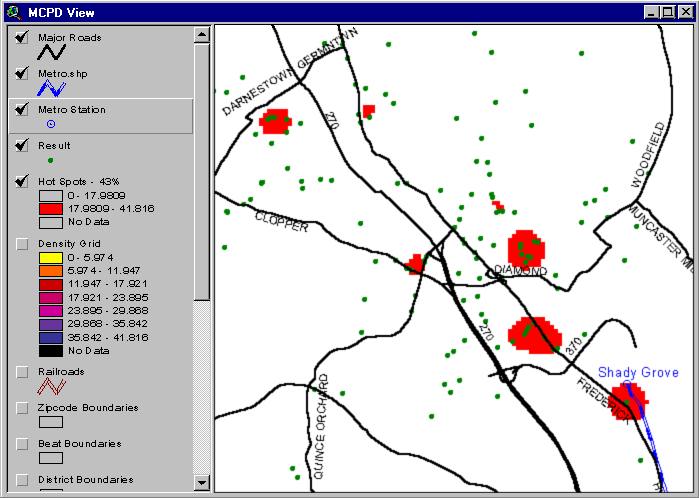

generation routine. Once this surface is generated, it is relatively
simple to reselect out the 'peaks' depicting hot-spots (Figure 3).
A tool was also developed with Visual Basic to allow the analyst
to adjust the cut-off point of the hot-spots via a sliding bar.
Another tool which can be used to assist in 'hot-spot' analysis
is the standard deviation ellipse (SDE) generator. This tool generates
a set of standard deviation ellipses based on the x, y distribution
of a point theme, or a selected set of those points. SDEs have
major and minor axes which match the standard deviations of the
x and y coordinates of the points. The ellipses are also rotated
to fit the slope of the distribution.
Regions based on standard deviation are often used in crime analysis
in predictive models for serial crimes; if an analyst has determined
that a series of crimes was likely committed by a single person
or group, known crime locations can be used to help predict where
and for what purpose law enforcement personnel can be deployed
(Gottlieb, 1994). In situations where the power of computers and
statistical software is not available, crime analysts resort to
calculating geometric means for a distribution of crimes, and
then using the X and Y standard deviations of that distribution
to generate a series of rectangles around the points. For SCAS,

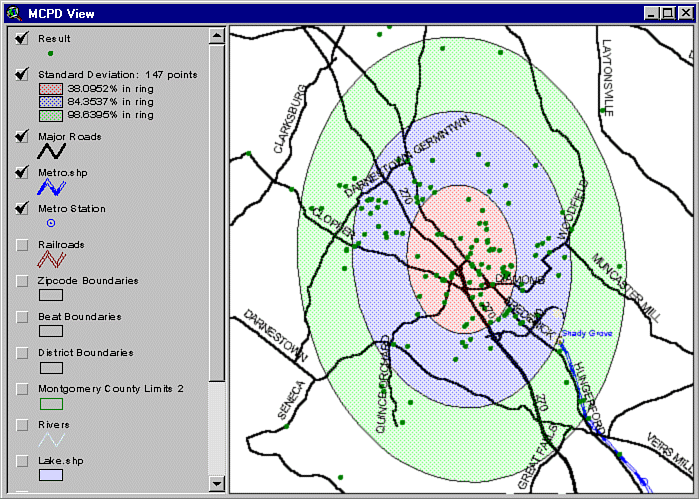

an Avenue routine that generates standard deviation ellipses was
written; this generic routine is then used by several different
tools to generate one or more ellipses around distributions.
These ellipses may then be displayed as graphics, or converted
to a shapefile (Figure 4).
In many cases, the data one examines in crime analysis is better
considered not in terms of single point features, but rather as
dyads. A vehicle is stolen in one location and recovered
in another. The location of a criminal's home may have some
bearing on where he commits a crime. By hiding the connections
between various types of origins and destinations, some patterns
of behavior can be obscured.
SCAS contains a set of tools developed to address specific crime
analysis needs in discovering and analyzing links between incident
locations and suspects or stolen vehicles. These tools can
be divided into two categories. The first operates on a
per-feature basis and is based on two-way links between tables
containing crime incident information and suspect or recovered
vehicle information. For a given set of incidents, a new
point theme containing suspects associated with the incidents
is created and linked to the original incident theme. Selecting
a point feature in either theme causes the corresponding point
in the other theme to be highlighted as well.
The second type of tool more explicitly shows the links between
origins and destinations, by drawing the dyad as a pair of points
with a line between them. SCAS has several symbolization
options for these lines, including arrowheads indicating the destination
end, and distance labeling along the line.
Two charting tools were developed which allow the crime analysts
to graph incident occurrences both spatially and temporally. Both
of the tools operate on a selected set of incident database records,
which were the result of a database query.

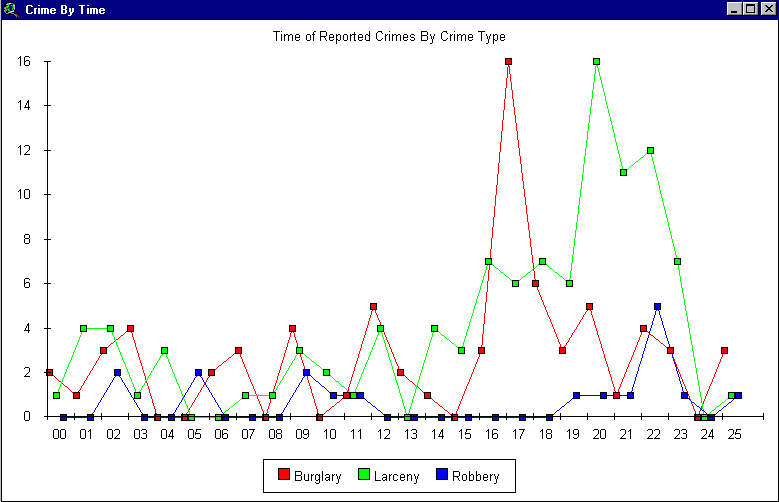

The temporal (Figure 5) chart graphically
displays in a line chart the number of incidents that occurred
in one hour increments for the entire 24 hours of a day. Any records
which do not have a time recorded are counted and displayed on
the chart as the "25th hour." Up to three higher-level
crime types (such as robbery, burglary, or sex crimes) can be
charted simultaneously. This chart provides a very easy to interpret
view of the temporal patterns of crime occurrence during the day.
The spatial trend chart summarizes the table by counting the number
of incidents for each Police Reporting Area (PRA) and/or police
beat, then creates a bar chart. This chart is a very simple way
to compare numbers of incidents of crime by polygon, and is a
good supplement to maps which have been created. In addition,
a table for each chart type is created containing all of the data
used to construct the charts.
One of the primary responsibilities of any mapping package is,
of course, to generate maps. Several scripts were written for
SCAS which completely automate the generation of plotter-ready
layouts. The goal of automating this process was to produce uniform
maps, offer multiple page sizes (8.5"x11" to 34"x44")
and page orientations (landscape and portrait). The layout generation
tools create the layout based on the current main view window.
To accomplish these goals, several scripts were developed to ensure
consistent layout generation. An update script was created that
would resize the view document window if the view's length and
width were not the same. This was necessary to ensure that changes
made to the view's aspect ratio do not affect the proportions
of the view in the layout.
Additional scripts were developed to create the layout templates
for each page size and page orientation. If the user selects a
template that does not exist within the project, SCAS will create
the appropriate layout template. Esri's multi-column legend script
was utilized to create the multi-column legend in the portrait
layouts.
To create a layout, the analyst first prepares the main View,
then chooses 'Create Layout' from the 'Crime Tools' menu bar.
Then, after answering a few dialog boxes for information such
as the title and subtitles the finished layout is generated.
The current plans for future development of SCAS include continued automation and enhancement the application based on feedback from the currently operational sites.
Since the current implementation of SCAS was developed for use by crime analysts, one goal for future versions will be to develop tools which are appropriate for use at the 'officer on the street' level. The purpose of these tools will be to incorporate spatial crime analysis technology into the functions of police officers day-to-day work.
There are currently three additional Police Departments under
review by the Department of Justice for SCAS implementation.
As these sites are implemented, the knowledge gained at each site
will be incorporated back into SCAS as a whole, the intent being
to create a crime analysis application which can address the needs
of as many police departments as possible.
Thanks to Robert Crump, Joe Pindell, and Vince Breneman for their
contributions to the development of SCAS. Appreciation is
also extended to the staffs of the Warrenton and Montgomery County
Police Departments for their cooperation.
The following references were used in the development of SCAS:
ArcView
Environmental Systems Research Institute (1996). Avenue Customization
and Application Development for ArcView.
Razavi, Amir H., John Alexander and Valerie Warwick (1995). ArcView/Avenue
Programmer's Reference: Class Hierarchy Quick Reference and 101
Scripts. Santa Fe: OnWord Press.
Crime Analysis
Block, Carolyn Rebecca and Margaret Dabdoub (Editors) (1993).
Workshop on Crime Analysis Through Computer Mapping Proceedings:
1993. Chicago: Illinois Criminal Justice Information Authority.
Eck, John E. and David Weisburd (Editors) (1995). Crime and
Place, Crime Prevention Studies, Volume 4. Monsey: Criminal
Justice Press
Gottlieb, Steven, Sharon Arenberg, and Rag Singh (1994). Crime
Analysis from First Report to Final Arrest. Alpha Publishing
Illinois Criminal Justice Information Authority (1988). Spatial
and Temporal Analysis of Crime Technical Manual. Chicago:
Illinois Criminal Justice Information Authority.
Taxman, Faye S. and J. Tom McEwen (1994). "High Tech Computer
Mapping and Low-Tech Community Policing." The Journal
of Urban Technology, Volume 2, Number 1, pages 85-103.
Visual Basic
Appleman, Daniel (1996). Visual Basic Programmer's Guide to
the Win32 API. Emeryville: Ziff-Davis Press.
Bloom, Stuart and Don Kiely (1995). Visual Basic 4 Database
How-To. Corte Madera: Waite Group Press.
Environmental Systems Research Institute (1995). ArcView Version
2 Working With Visual Basic.
Jennings, Roger (1996). Database Developers Guide with Visual
Basic 4 Second Edition. Indianapolis: Sams Publishing
Wang, Wallace (1995). Visual Basic 4 For Windows For Dummies.
Foster City: IDG Books Worldwide, Inc.
Wang, Wallace (1996). More Visual Basic 4 For Windows For Dummies.
Foster City: IDG Books Worldwide, Inc.
ODBC / SQL
Geiger, Kyle (1995). Inside ODBC. Redmond: Microsoft Press.
Groff, James R. and Paul N. Weinberg (1994). LAN Times Guide
to SQL. Berkeley: Osborne McGraw-Hill.;
MS Help Compiler
Microsoft Press (1995). Microsoft Windows 95 Help Authoring
Kit. Redmond: Microsoft Press
John DeVoe
GIS Staff Chief
US Department of Justice, Criminal Division
1400 New York Avenue, Room 7120
Washington, DC 20005
(202)514-8510
David Nulph
Senior GIS Analyst
INDUS Corporation
1953 Gallows Road, Suite 300
Vienna, VA 22182
(703)506-6700
dnulph@induscorp.com
Jeff Burka
GIS Analyst
INDUS Corporation
1953 Gallows Road, Suite 300
Vienna, VA 22182 (703)506-6700
jburka@induscorp.com
Alex Mudd
GIS Analyst
US Department of Justice, Criminal Division
1400 New York Avenue, Room 7120
Washington, DC 20005
(202)307-3865
crm_gis@access.digex.net
