Writing GIS Applications for the WWW

Table of Contents

• Introduction
• Client/Server Applications on the WWW
• GIS Servers for the WWW
• The DRAW Command
• Other Basic Commands
• Writing Scripts with Basic Commands
• The Future of Client/Server GIS

1. Introduction

The World Wide Web (WWW) gained fame as a massive, stateless, connectionless, client/server application. Browsers sent requests to Web servers to get documents. Originally, the document only contained text and graphics. Browser clients never "logged on" to the server and the connections only lasted long enough for the client to retrieve the necessary document. After transferring the document, neither the client nor the server remembered much about each other. Connectionless means that only for the duration of the retrieval of a document (or more generally the information associated with  a Uniform Resource Locator (URL)) are the client and Web server actually connected or communicating with each other. Stateless means that for normal HTTP transactions neither the client nor the server remembers much about the other. After a transaction finishes, the server forgets the client and the client is free to request any available document anywhere in the WWW.

Client/server applications built on stateless and connectionless protocols are very new to GIS. For previous client/server models (like ArcView/SDE or Map Objects/SDE), a session had both state and connection. For client/server GIS software systems, the client usually maintains the state of the map. For example, when a map is displayed, it has a bounding box or extent in map coordinates. This information is critical to reporting the map coordinates of the cursor and therefore for zooming, panning, identifying, selecting and measuring. Since the client is effectively disconnected from any server (and in the future may ask many different servers to assist with spatial queries), it must continually store and update this information. In an HTML solution, this is done with hidden variables. With JavaScript or VB Script, global variables, accessible to any object, are used to share state. With Java, an object in the client remembers the current extent as a property or a variable.

This paper is an introduction to writing client/server GIS applications. Our client/server model is the WWW and we focus on a typical three-tier configuration:
1. A WWW client like Netscape Navigator (Navigator) or Microsoft Internet Explorer (IE)
2. A Web Server like Netscape Enterprise Server or Microsoft's Internet Information Server (IIS)
3. A GIS Server like Esri's ArcView Internet Map Server (AvIMS).
In the first sections, WWW URL's are discussed along with how to use them to invoke GIS Server scripts to DRAW a map. This simple method is the core of an implementation of zoom-in, zoom-out, pan, zoom-to-extent-of-selected and other map drawing functions. Other basic commands are also described for SELECT, IDENTIFY, RETURNEXTENT and LOCATE. The last function returns a point from an address. A simple scripting technique shows how to group these basic operations together into new functions. In our example, the scripts are actually created at the client and delivered to the server for processing. This gives the client great flexibility in defining new methods without constantly having to write special purpose functions on the server. We end with a view of the future: GIS applications as a set of customized networked objects.

2. Client/Server Applications for the WWW

The WWW is a global, client/server network. Web browsers, the clients, connect to Web servers to get documents. The host and the document requested by the browser are encoded in a Uniform Resource Locator (URL).

---

Example 2.1: Simple URL's

A URL is made up of several parts. To access an HTML document, an absolute URL completely specifying all information, has the following components:
• A protocol: http, ftp
• A host name or an IP address of a host: www.wptc.com, www.Esri.com or 207.87.124.133
• A path to a document: /storefaq
• A document: class_schedule.html

---

Although this simple URL encoding of a host and a document enabled the creation of Web documents with text, graphics and hyperlinks, it wasn't enough for even the simplest data access. To support HTML forms and Common Gateway Interface (CGI) applications, the URL encoding was extended. The extension allowed an executable program to received a collection of name/value variable pairs.


---

Example 2.2: Looking for Esri on Yahoo

Yahoo (www.yahoo.com) provides a search engine for the Web. In a text window, search terms are entered. When the Search button is pressed, the search terms are sent to Yahoo's database query tools. The search terms are actually encoded in a URL. The following looks for the term "Esri" in Yahoo's database:

    http://search.yahoo.com/bin/search?p=Esri

On Saturday, April 12th, it returned references to 35 sites. The URL for a document or the URL produced by an HTML form is always visible in the location window of the browser. For the URL looking for "Esri" on Yahoo:
• http is the protocol
• search.yahoo.com is the host
• /bin is the path
• search is the name of the executable program
• ? is a special character in this URL
• p=Esri tells the search program to set its p variable to Esri.
This URL can be entered in the location window of a browser like any other URL. This extends URL encoding to making programs with parameters Web addressable resources -- just like HTML documents and gif images.


---

The rules for encoding a fully qualified CGI URL are:
• Protocol: http
• Host Name: av.yahoo.com
• Path: /bin
• Executable: query
• Separator: ? to separate the executable from its parameters
• Name/Value pairs: p=Esri&hc=0&hs=35
• Each pair is separated by an &
• Most punctuation and non-alphanumeric characters are written replaced by a "%" and their hex value. For example: %3F replaces the "?".
• Blanks are converted to "+"'s.

---

Example 2.3: A silly query with special characters

It's a silly query, but to illustrate the encoding, if you keyed "Mr. Jones: Did he score 100%?" into the search window at Yahoo, the URL would be:

    http://search.yahoo.com/search?p=Mr.+Jones%3A+Did+he+score+100%25%3F

The %3A replaced ":", the %25 replaced the "%"; the "%3F" replaced the "?". Plus signs fill in for blanks.


---


Encoding CGI script references and parameters in URL's led to the widespread deployment of database application. HTML forms were used for data-entry (site-registration, userid/passwords) or as query front-ends. Database applications on the WWW are excellent examples of three-tier client/server applications.

---

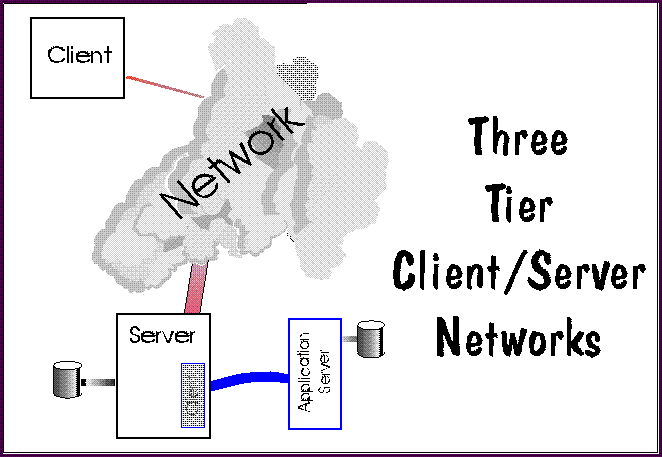

Examples 2.4: Three Tier Client/Server Database Application


• The Client connects across a network to the Server
• The Server, acting as a client, connects to the Application Server
• The Application Server provides services to the Server's client which are relayed to the Client.
Specific Examples:
• Most database applications on the Web are three-tier client/server networks. The Client is a Web browser, the Server is a Web server and the Application Server is a Database Server like Oracle Workgroup Server or Microsoft's SQL Server
• Esri's Real Estate Information Network was a three-tier network using ArcView as a Client, Esri's GeoServer as the Server and SDE as the Application Server.
• Esri's Internet Map Servers (Map Objects and ArcView) are both three-tier client/server networks. The Client is a Web browser, the Server is a Web Server and the Application Server is either the ArcView Internet Map Server or the Map Objects Internet Map Server.

---


Web servers have no special knowledge of spatial datasets. The simplest technique for writing a GIS application on the Web is to connect the Web server to a GIS Server (like the Map Objects Internet Map Server, ArcView Internet Map Server, possibly SDE or wptc's gifView GIS Server) and encode requests for spatial processing as URL's. This is much like encoding a complex database query generated by the HTML form in a URL.

The rest of this paper discusses how to write GIS applications for the WWW using this strategy. The example GIS Server is Esri's ArcView Internet Map Server. We start with a simple DRAW command. Other commands to SELECT, IDENTIFY, RETURNEXTENT and LOCATE are described, but not in detail. As an example, these commands are used to zoom to the extents of a polygon containing an address. This might be used in an application where we wanted to view the service zone associated with an address. The service zone could be a hospital district, school attendance zone, census tract, electoral district, wire center or a zip code. This example is implemented using a very simple scripting language based on our five commands.

3. GIS Servers for the WWW

To provide GIS services to a Web Client in a three-tier client/server network, the GIS Server must satisfy two basic criteria:
1. A bidirectional connection exists between the Web Server and the GIS Server.
• The Web Server must be able to send the name/value pairs contained in a URL
• The GIS Server must be able to write the results of the processing back to the Web Server, who then delivers them to the Web Client.
2. The GIS Server is capable of producing Web compatible output. This means:
• Graphics usable by Web Browsers or Java Applets: gif and JPEG
• HTML documents
• Structured or tagged text files for use by Java applets

The ArcView Internet Map Server utilizes a socket to connect to the Web Server. Sockets are a common TCP/IP protocol for passing messages between two processes on the same or different hosts. One system, the server (in our example, the ArcView Internet Map Server), listens to a fixed socket address called a port. Clients (the Web Server is a client requesting services from ArcView) send messages to this port; the server receives them and writes responses back. Socket protocols allow the server to block the port while it is processing a request. This means that other requests will queue up at the port waiting for services. Sockets provide an efficient way to pass messages and have the additional advantage of providing first-in-first-out (FIFO) queuing.


---

Example 3.1: Registering AvIMS with the Web Server

ArcView IMS registers the socket where it listens for requests by sending a URL to the Web Server:

http://winnt.wptc.com/.Esrimap
    ?Reg=project411c8239
    &Machine=winnt
    &Port=1045
    &Timeout=20
    &Retry=5
    &MaxPending=10

This URL is recognized by the Esrimap.dll as registering project411c8239 for the host winnt on port 1045. This is sometimes written as winnt.wptc.com:1045, where winnt.wptc.com is the host name on the Internet and 1035 is the socket. A colon separates the two. There is a corresponding request to unregister.

http://winnt.wptc.com/.Esrimap
        ?UnReg=gifviewims411c8239
        &Machine=winnt
        &Port=1045
        &Timeout=20
        &Retry=5
        &MaxPending=10

that frees up the mapping of the port to the name of the project.

---

This registration process builds a table in the DLL associating the name parameter with a TCP/IP socket. An integral part of the AvIMS extension is support for sockets. The Socket class allows ArcView to listen to a port. When the DLL writes to this port, the AvIMS extension receives the information and passes it to a Dispatcher. The default script provided with the AvIMS is called AVINETMP.Dispatcher, but this script can be replaced by any script using the WebLink.Make request. The contents of the conversation between the DLL and ArcView can be traced or observed using the following command:

    Socket.Log("CON")

If this single statement is put in an Avenue script, compiled and executed, the next time a URL arrives at the DLL and is passed to ArcView a console window (it looks like a command line prompt window) opens, and the messages being passed between the DLL and ArcView are displayed in the window.

---

Example 3.3: Tracing a Request

Short AvIMS URL

http://winnt.wptc.com/.Esrimap
    ?name=project411c8239
    &cmd=test

Message sent from the DLL to ArcView

FD_READ
cmd=gifviewims.test&submit=Test
>> Going to execute MappingScript <<

Test: An Avenue Script (suppose this is what gets called by the Dispatcher)

'!Test
t = Script.The.GetName
p = av.GetProject
parms = SELF

rpt = {"<html><head><title>Metadata.TEST</title></head>"}
day = Date.Now.GetDay
today = Date.Now.SetFormat("M/d/yy").AsString
now = Date.Now.SetFormat("h:m:s").AsString
rpt.Add("<body><center><h1>Esri User Conference '97!!</h1><h1>On "
         + day + ",<br>" + today + ",<br>at " + now
         + ",<br>gifViewIMS Demo is up!</h1></center></body></html>")
parms.Set("Cmd",TRUE)
return rpt

Message sent from ArcView back to the DLL

FD_READ
cmd=gifviewims.test&submit=Test
>> Going to execute MappingScript <<
Content-type: text/html

<html><head><title>Metadata.TEST</title></head>
String send ok
<body><center><h1>Esri User Conference '97!!</h1><h1>On
  Thursday,<br>4/17/97,<br>at 1:03:45,<br>
  gifViewIMS Demo is up!</h1></center></body></html>
String send ok
<< Done executing MappingScript >>
Write Done ok
Write succeeded

What appears in the Client

Esri User Conference '97!!
On Thursday
4/17/97
at 1:03:45
gifViewIMS Demo is up!

---

Suppose the Dispatcher uses the value of the cmd parameter to find and run an Avenue script. When the URL arrives at the DLL, it sends the name/parameter part of the URL to the AvIMS extension which passes it along to the Dispatcher. The Dispatcher launches the Test script which writes a short HTML document back to the client. This simple example is an excellent test of the connectivity of all the components in the system.

To create Web compatible output, the GIS Server needs two more capabilities:
• Create images: gif or JPEG
• Write text strings containing HTML for a browser (see Test above) or structured text to return to a Java client.
This is accomplished by the AvIMS with the following requests:

WriteHeader, Write,...

' WebLink.Script
t = Script.The.GetName
debug = true
debug = false
wl = WebLink.The
parms = Dictionary.Make(5) 'Make a dictionary to hold the name/value pairs
for each x in SELF         'Load the name/value pairs into the dictionary
  parms.Add(x.Get(0),x.Get(1))
end

if (debug) then            'If debug=true, stop everything and show a list box
  rpt = {}                 'with the name/value pairs. Good for debugging???
  for each key in parms.ReturnKeys
    rpt.Add(key + " --> " + parms.get(key))
  end
  MsgBox.ListAsString(rpt,"Parms",t)
end

cmd = parms.Get("Cmd")     'Get the cmd-parameter and use its value in av.Run
result = av.Run(cmd,parms) 'Run the cmd-parameter script
cmd = parms.Get("Cmd")     'Cmd gets changed during the running of this script
                           'This is not a good idea!!! Use another variable.

wl.WriteResponseHeader("Content-type: TEXT.HTM"+CR+NL+CR+NL)
                           'Writes the response header that identifies the mime
                           'type of the datastream that follows
if (cmd = NIL) then
elseif (cmd = "Error") then
elseif (cmd) then          'If the script executed successfully, it returned a list
  for each ln in result    'list of strings. Write them back to the client using
    wl.writestring(ln)     'the writestring reques.
  end
elseif (cmd.Not) then
else
end
return true

ExportTogif,ExportToJPEG

The ExportTogif and ExportToJPEG are View requests. They take the contents of a view's DocWin and convert it to the gif or JPEG file. (Consult your AvIMS documentation for details on using the gif format.)

The following Avenue code loads a set of themes into a View, sets the size of the View's DocWin, zooms in and then converts the result to a graphics image:

---

Example 3.4: Getting the Image

' Set the extent by reading the parameters for left, bottom, width and height
left    = parms.Get("Left").AsNumber
bottom  = parms.Get("Bottom").AsNumber
width   = parms.Get("Width").AsNumber
height  = parms.Get("Height").AsNumber
r = Rect.Make(left@bottom,width@height)

' Set the dimension
xSize = parms.Get("xSize").AsNumber
ySize = parms.Get("ySize").AsNumber
dimension = xSize@ySize

' Get the number of themes in the View
numThemes = parms.Get("num").AsNumber

' Make a view. v is empty to start with and its table of contents is set to 0 width
v = View.Make
v.SetTocWidth(0)

' Set Window Size
v.GetWin.ReSize(dimension.getX,dimension.getY)
' Zoom to area of interest
v.GetDisplay.ZoomToRect(r)

for each iTh in (0 .. (numThemes - 1))
  iThNum = iTh
  iThNum.SetFormat("d")
  themeLegend = parms.Get("Th" + iThNum.AsString)
  if (themeLegend.IndexOf("+") = -1) then
    continue
  end
  th = _themelegend.Get(themelegend)
'_themelegend requires some explanation. First it is a global variable, hence persistent
'across executions of this script. Second, it is a dictionary. In it are stored key/value
'pairs: the key is a combination of a theme ID and a legend ID. The value is a reference
'to a theme object with that legend. The theme may also have a GraphicSet (annotation)
'attached to it. _themelegend could be stored in an object tag. We store it in an ODB. There
'are tools in our gifViewIMS project to publish themes with legends and annotation and
'store them in this ODB.
  if (th = NIL) then
    continue
  end
  th.SetActive(true)
  th.SetVisible(true)
  th.SetLegendVisible(false)
  v.AddTheme(th)
end
v.GetWin.Open
v.Invalidate
' ------------------- Create the Graphic --------------------------
SafetyOn = true
'***************************
'* Create and Send the JPEG *
'***************************
gifDir = (_metaviewRoot + "gif\").AsFileName
gif    = gifDir.MakeTmp("loc","jpg")
url    = (_metaviewURL + "gif/") + gif.GetBaseName
tmpfn = v.ExportToJPEG(r,xsize,ysize,100,SafetyOn)

With this background, we are ready to sketch a set of core commands that most AvIMS applications will implement.

4. The DRAW Command

AvIMS can export anything drawn in the View's DocWin. The Avenue requests, aView.ExportTogif and aView.ExportToJPEG, capture the pixel map in the MapDisplay for the visible extent. The result is stored in a temporary file on the file system. The three key ingredients of this request are:
• A rectangle r:



r marks the bounds of the extent of the visible area. One way to describe r is with four number (in map coordinates). The left hand boundary, the bottom boundary, the width and the height. The Avenue request that displays the portion of the map inside the rectangle r is

        aView.GetDisplay.ZoomToRect(r)

• The dimensions, pixels, of the required graphic.




A DocWin has a size that can be obtained from its ReturnExtent request:

        dimension = aView.GetWin.ReturnExtent 'Actually a point
        width     = dimension.GetX            'The x-coordinate is the width
                                              'of the window
        height    = dimension.GetY            'The y-coordinate is the height
                                              'of the window

• The list of visible themes:




These are the layers in the map that we actually want to draw. For our purposes, we'll assume this is a list of names. In the example above we used Id's instead of names.

---

Example 4.1: The DRAW command (finishing the last example in Section 3)

'!DRAW
t = Script.The.GetName
p = av.GetProject
Script.The.SetNumberFormat("d.dddddd")
debug    = TRUE
debug    = FALSE
if (debug or (SELF=NIL)) then
  keyListClient = "Extent,Left,Bottom,Width,Height,xSize,ySize,num".AsTokens(",")

  Test = Dictionary.Make(1)
  Test.Add("1.  Polygons",{"Client","-99","30","2","1","800","600","1","DET0000060+LEG0000025"})
  Test.Add("2.  Canada",{"Client","-140","40","87","47","800","600","1","DET0000061+LEG0000027"})
  Test.Add("3.  Canada/Zoom",{"Client","-71","42","10","7","800","600","1","DET0000061+LEG0000027"})
  Test.Add("4.  World/US/Canada/Mexico",{"Client","-180","-90","360","180","800","600","4","DET0000074+LEG0000029","DET0000098+LEG0000031","DET0000061+LEG0000027","DET0000068+LEG0000034"})
  Test.Add("5.  US/Counties",{"Client","-105","25","20","18","800","600","3","DET0000079+LEG0000033","DET0000098+LEG0000032","DET0000078+LEG0000040"})
  Test.Add("6.  US/Tx Counties/Travis",{"Client","-105","25","20","10","800","600","3","DET0000098+LEG0000031","DET0000077+LEG0000036","DET0000078+LEG0000040"})
  Test.Add("7.  Travis BG/Travis St",{"Client","-97.777121","30.306699","0.035443","0.025608","800","600","3","DET0000075+LEG0000030","DET0000073+LEG0000037","DET0000099+LEG0000035"})
  Test.Add("8.  Travis BG/St/Anno",{"Client","-97.777121","30.306699","0.035443","0.025608","800","600","2","DET0000075+LEG0000030","DET0000073+LEG0000039"})
  Test.Add("9.  CAD",{"Client","1211303.86","172087.93","24000","16200","800","600","2","DET0000113+LEG0000041","DET0000114+LEG0000042"})
  keys = Test.ReturnKeys
  keys.Sort(TRUE)

  aTest = MsgBox.ListAsString(keys,"Pick a test:",t)
  if (aTest = NIL) then exit end
  parmList = Test.Get(aTest)
  parms = Dictionary.Make(1)

  for each x in keyListClient
    parms.Add(x,parmList.Get(keyListClient.FindByValue(x)))
  end
  n = parms.Get("num").AsNumber
  for each i in (0 .. (n - 1))
    i.SetFormat("d")
    parms.Add("Th" + i.AsString,parmList.Get(8+i))
  end
else
  parms = SELF
end 'DEBUG
_gDict   = Dictionary.Make(1)

' Set the extent
left    = parms.Get("Left").AsNumber
bottom  = parms.Get("Bottom").AsNumber
width   = parms.Get("Width").AsNumber
height  = parms.Get("Height").AsNumber
r = Rect.Make(left@bottom,width@height)

' Set the dimension
xSize = parms.Get("xSize").AsNumber
ySize = parms.Get("ySize").AsNumber
dimension = xSize@ySize

numThemes = parms.Get("num").AsNumber
v = View.Make
v.SetTocWidth(0)

' Set Window Size
v.GetWin.ReSize(dimension.getX,dimension.getY)
' Zoom to area of interest
v.GetDisplay.ZoomToRect(r)

vList = v.GetGraphics
for each iTh in (0 .. (numThemes - 1))
  iThNum = iTh
  iThNum.SetFormat("d")
  themeLegend = parms.Get("Th" + iThNum.AsString)
  if (themeLegend.IndexOf("+") = -1) then
    continue
  end
  th = _themelegend.Get(themelegend)
  if (th = NIL) then
    continue
  end
  for each x in th.GetGraphics
    if (r.Intersects(x.GetBounds)) then
      v.getGraphics.add(x)
    end
  end
  th.SetActive(true)
  th.SetVisible(true)
  th.SetLegendVisible(false)
  v.AddTheme(th)
end
v.GetWin.Open
vList.Invalidate
v.Invalidate


' ------------------- Create the Graphic --------------------------

SafetyOn = true
for each t in v.GetActiveThemes
  if (t.Is(ITheme)) then
    SafetyOn = false
    break
  end
  if (t.GetClass.GetClassName = "GTheme") then
    if (t.GetLegend.GetSymbols.Count > 10) then
      SafetyOn = false
      break
    end
  end
end

'***************************
'* Create and Send the gif *
'***************************

gifDir = (_metaviewRoot + "gif\").AsFileName
gif    = gifDir.MakeTmp("loc","jpg")
url    = (_metaviewURL + "gif/") + gif.GetBaseName

tmpfn = v.ExportToJPEG(r,xsize,ysize,100,SafetyOn)

wlink = WebLink.The
file.copy(tmpfn,gif)
file.delete(tmpfn)
p.RemoveDoc(v)

if (DEBUG and ((parms.Get("Java") = "N") or (parms.Get("Java")=NIL))) then
  ns = DDEClient.Make("Netscape","WWW_OpenURL")
  ns.Request(url + ",,-1")
  ns.Close
  ns = DDEClient.Make("Netscape","WWW_Activate")
  ns.Request("-1,0")
  ns.Close
elseif (DEBUG.Not and (parms.Get("Java") = "Y")) then
  java = """" + left.AsString + "," + bottom.asString + "," + width.asString + "," + height.asString
  java = java + "," + xSize.setFormat("d").asString + "," + ySize.setFormat("d").asString
  java = java + ",1,ALL " + url
  java = java + """"
  parms.Set("CMD",true)
  rpt = {java}
  return rpt
else
  parms.Set("CMD",true)
  rpt = {"<html><head><title>ArcView Internet Map Server</title></head>"}
  rpt.Add("<body bgcolor=#000000><table border=5 cellpadding=5 cellspacing=5><tr><td bgcolor=white><img src=" + url + "></td></tr></table>")
  rpt.Add("</body></html>")
  return rpt
end

---


One interesting characteristic of this code is the debug flag.The default is for debug to be false, and the debugging blocks are skipped. When debug is set to true, the script loads a list of possible tests of this script. Picking one from the list, invokes the body of the script, which produces a JPEG. At the bottom, if debug is true and the Netscape browser is open, an HTML document containing the image is written to the filesystem and using a DDE request the browser opens the document. When you have finished testing several possibilities, the values and names of the parameters that need to be encoded in the URL are obvious. This all done completely within ArcView without any attachment to the Web.

This is the AvIMS side -- the Avenue code. The client needs to package up a URL that encapsulates this information for transmission over the Web. First we need a short digression on coordinate transformations:

---

Example 4.2: Coordinate Transformations

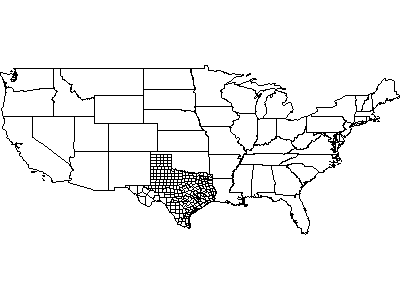

Suppose a map of the lower 48 states is drawn on a screen 600x400 pixels in size. It might look like this:
The pixel coordinates of this image run from (0,0) in the upper left corner to (399,299) in the lower right corner. x-values increase from left to right and y-values increase from top to bottom. Roughly, the extent of this image in longitude and latitude is:
    left = -125.0
    bottom = 24.0
    width = 58.0
    height = 26.0
The map coordinates of any pixel can be computed as follows. Suppose the pixel coordinates of the point are (x,y), then

    longitude = left + (x/400)*width
    latitude  = bottom + ((300-y)/300)*height

On the client-side, the map is usually redrawn as a result of some event, some mouse click or keyboard action that results in a new display. It could be something as simple as turning off or on a layer. This doesn't change the map coordinates of the display or the pixel size of the screen. To process this request we may need to send the server a request to draw a new set of  map layers.

Other possibilities include zooms or pans. For a zoom, the user drags a rectangle on the map. The applet (written in Java) captures the pixel coordinates of two corners of the rectangle and using a calculation like Example 4.2 computes the map coordinates of the rectangle. This is the r in the draw request. The dimension of the window are known: 400x300 in our example. The maplayers are US States and Texas Counties. A URL that captures all this is:

    http://winnt.wptc.com/.Esrimap
        ?name=project411c8239
        &cmd=draw
        &left=-125.0
        &bottom=24.0
        &width=58.0
        &height=26.0
        &xSize=400
        &ySize=300
        &layers=US+States%5ETexas+Counties

Putting it all together:
• The user drags a rectangle on the map in the Client
• The applet constructs the URL and sends it to the Web Server
• The Web Server passes it to the DLL
• The DLL looks up the socket and passes it to the appropriate instance of AvIMS
• The URL's contents are finally available to the Dispatcher
• The Dispatcher launces the draw script and passes it the name/value pairs encoded in the URL (in our case, we repackaged them in a dictionary called parms).
• The draw script dynamically looks up the themes, creates a view, sets the window the right size, zooms to the requested extent, draws the themes, scraps the screen to get the graphic and returns something to the Java applet -- maybe the graphic, maybe just a reference to the graphic.
• The applet displays the new map in the graphics window.

Slight variations on this sequence can be used to create support for the following tools:
• Pan
• Zoom-Out
• Zoom-To-Extent-Of-Active
• Zoom-To-Extent--Of-Selected
Most of the changes are in the handling of the user's mouse input or menu selections at the client, not in the URL or the server processing.

5. Other Basic Commands

Basic commands are functions used frequently by spatial processes. DRAW is certainly an example of that. Others are:
• Identify




Click on a feature and have the system return the attributes for the feature

URL:

    http://winnt.wptc.com/.Esrimap
        ?name=project411c8239
        &cmd=identify
        &pt=93.56+32.131
        &activelayer=Texas+Counties

This URL encodes a point someplace over Travis County, Texas. If the client has the capabilities to make any layer active, at any time, then this basic command supplies an identify function.
• Select




Using graphics like points, lines, polylines, polygons, circles and rectangles, select features in a spatial dataset. We'll only consider a selection criteria where the feature intersects the graphic, but there are many other possibilities

URL:

    http://winnt.wptc.com/.Esrimap
        ?name=project411c8239
        &cmd=select
        &graphic=rectangle+left+bottom+width+height
        &seltype=intersect
        &tolerance=distance
        &activelayer=US+States

In this example, the graphic captures the type of shape as its first value (remember the +'s get converted to blanks when the URL's are decoded), and then a string of numbers. When these are paired together, they form a list of points that define the shape. For the rectangle, we use the (left,bottom) lower left hand corner and the width and height of the rectangle. For a circle, it might be the center and a point on the boundary. The seltype defines the type of selection -- features that intersect the graphic, features that contain the graphic, ... A tolerance allows the select all features within the tolerance distance of the graphic.
• ReturnExtent




Given a feature (or more generally, a list of features), return the map coordinates of the  smallest rectangle containing all the features

URL:

    http://winnt.wptc.com/.Esrimap
        ?name=project411c8239
        &cmd=returnextent
        &feature=f

This is simple. The extents of the feature are computed by AvIMS and returned to the client.
• Locate




Given an address, geocode the address and return a point in map coordinates. There are many other similar possibilities for a locate function.

URL:

    http://winnt.wptc.com/.Esrimap
        ?name=project411c8239
        &cmd=locate
        &address=3305+Hancock+Drive
        &matchable=Travis+County+Streets

The client obtains the address, sends it to the server, specifying a theme that supports address matching and geocoding. In ArcView, this is called a MatchTheme.

6. Writing Scripts with Basic Commands

With a set of basic commands, it is now possible to write simple scripts, package them up as part of the URL, and execute these scripts at the GIS Server. As an example we show how to write a script that geocodes an address, selects a feature using the location of the address and then draws a map using the extent of the feature.



---

Sample Script
Suppose we are given the dimension d of the screen (say 600x400 pixels) and the MapLayers to draw. MapLayers is a list with ArcView Theme ID's or Name's. For example, MapLayers = USA+Canada+Mexico requests the drawing of three layers: the USA, Canada and Mexico

pt=locate(anAddress,aMatchableTheme)
f=select(pt,aMapLayer)
r=returnExtent(f)
result=draw(r,d,MapLayers)

---

Sample URL

http://winnt.wptc.com/.Esrimap
    ?name=avims043c1234
    &cmd=execute
    &script=pt%3Dlocate%28anAddress%2CaMatchableLayer%29%0Df%3Dselect%2Dpt%2CaMapLayer%29%0D
            r%3DreturnExtent%28f%29%0Dresult%3Ddraw%28r%2Cd%2CMapLayers%29
    &anAddress=3305+Hancock+Drive
    &aMatchableTheme=Travis+County+Streets
    &aMapLayer=USA
    &dimension=600+400
    &maplayers=USA+Canada+Mexico

What this sample URL does is encode the script, specify the execute method on AvIMS be invoked to process the script with the specified variables. To help with the decoding:
• %3D is an =
• %28 is (
• %29 is )
• %2C is ,
• ...and remember that +'s replace blanks (600+400 and USA+Canada+Mexico).
Finally, the name/value pairs each start on a separate line to improve readability. The actual URL would be on one impossibly long line that was difficult to decipher.


---

Execute
Here is a skeleton of what the Avenue code might look like to process the script included in this URL. Dictionaries are used extensively to store and retrieve variables and their values by name. This is very similar to what is called a Symbol Table in most languages. Our rendition of a scripting language is simplistic, without error checking, completely lacking in looping and flow of control constructs, but it does illustrate how basic atomic commands on the server might be combined by scripts written on the client! (Note: it isn't really necessary to invent a new scripting language: Avenue scripts written at the client, could also be passed to the server for execution.)

---

Example 6.1

'!Execute
t = Script.The.GetName
p = av.GetProject
debug=true
'debug=false
if (debug) then
  parms=Dictionary.Make(2)
  parms.add("anAddress","3305 Hancock Drive")
  parms.add("aMatchableTheme","Travis County Streets")
  parms.add("aMapLayer","USA")
  parms.add("dimension","400 300")
  parms.add("maplayers","USA Canada Mexico") 'This is awful. Never use blanks as a delimiter!
  s = "pt=locate(anAddress,aMatchableTheme)" + nl
  s = s + "f=select(pt,aMapLayer)" + nl
  s = s + "r=returnExtent(f)" + nl
  s = s + "result=draw(r,dimension,MapLayers)" + nl
  parms.add("script",s)
else
  parms=SELF
end

source = parms.get("script").AsTokens(nl)
for each ln in source
  x = ln.AsTokens("=")
  retVal = x.Get(0)
  y      = x.Get(1).AsTokens("()") ' the function call split on opening and closing parens
  fcn    = y.Get(0)
  vars   = y.Get(1).AsTokens(",")
  vals={}
  for each v in vars
    vals.Add(parms.Get(v))
  end
  answer = av.Run(fcn,vals)
  parms.add(retVal,answer)
end
return parms.Get("result")

This script was checked with debug=true. The implementation of locate, select, returnextent and draw are what remains to be done.

7. The Future of Client/Server GIS

The ArcView IMS (and also MapObjects Internet Map Server) is the application server in a three-tier client/server architecture. By passing URL's to a Web Server and then to AVIMS, Web Clients can request a wide variety of services from ArcView. Objects in the client are expressed as name/value pairs in the URL. This is referred to as serialization or marshalling. The objects are then reconstructed within ArcView. This protocol, although crude and somewhat cumbersome, is an example of distributed objects and remote method invocation. The future for client/server GIS is the following:
• Multiple servers accessed by a single client
• A GIS Object Model in the client that allows vector features to be transported to the client and managed exactly like any other layers created as graphics layers at a network host.
• A common GIS Object Model in the client and the server and less distinction between their client and server roles. To support functions like a shared whiteboard all participants must be both clients and servers.
• Less knowledge of the network protocols will be required as networked objects become more prevalent. For example, DCOM, CORBA or the Java's Remote Method Invocation.
• Components for distributed GIS built on Java Beans or ActiveX.

Client/server GIS is challenging and exciting. It opens new opportunities for using GIS in networked, distributed application development.
