Requirements Analysis For GIS Over A Wide Area Network

The City of Philadelphia is building one of the largest integrated municipal GIS systems in the world. We have a total of 22 different coverages completed or in construction ranging from fire hydrants to orthophotography. Parts of our multi-server system, which also incorporates new and legacy databases, are up and running over CityNet, our wide area network. However, the GIS generated Ethernet traffic we are looking at now is only a tiny fraction of what we anticipate, and we clearly recognize the need to design and build new network infrastructure.

In order to effectively predict the City's network requirements to support the GIS we had to identify and generalize GIS user types and access methods, and, then, measure local Ethernet traffic in a number of scripted scenarios. We also had to take into consideration emerging communications technologies such as Fast Ethernet and ATM. In addition, we had to find a way to mathematically model the impact that unleashing access to the GIS would have on CityNet.

Recent statistical analysis of Ethernet traffic at Bellcore has shown that Ethernet traffic is self-similar or fractal in nature; that there is no natural length of a "burst". This startling but widely accepted result challenges the traditional assumptions of a Poisson model for the interarrival distribution of data communications traffic. This paper is a description of the methodology that Philadelphia, looking beyond the Poisson model, applied to the traffic measurements during scripted events to help the City design network capacity and speed appropriate for the additional demand that we anticipate GIS will be placing on CityNet.

OVERVIEW OF PHILADELPHIA'S ENTERPRISE WIDE GIS

Philadelphia is fortunate to have an administration that is supportive of GIS. While capital funding for other information systems is routinely denied, this administration has interpreted the need for building GIS datasets as appropriate for the capital budget. Already the City has spent over ten million dollars building GIS infrastructure.

The Mayor's Office of Information Services (MOIS) is charged with the responsibility for information technology Citywide and is ultimately responsible for, and must sign off on, all information technology procurements. This gives the MOIS the ability to create and enforce standards which have been extremely important in the success of the Citywide GIS. Our environment includes a GIS software standard of Esri products and a hardware platform of IBM RS6000 with AIX UNIX. The applications are on Ethernet LANs running TCP/IP as the network protocol.

MOIS functions as the coordinator of the various departmental GIS efforts and provides technical and administrative support. There are currently four departments with large scale GIS implementations whose activities are briefly described below.

The Philadelphia City Planning Commission (PCPC) is the GIS production center where map products are created to meet the needs of departments without access to the system as well as PCPC's own extensive mapping requirements. Currently PCPC maintains the parcel and zoning bases, as well as, numerous other geo-political boundary coverages. There are five full time GIS staff using the system as well as approximately 10 other planners who are intermittent users. The number of staff and users will increase only slightly over the next few years.

The Streets Department maintains the street centerline coverage and uses it in an increasing number of applications supporting their operations such as trash truck routing and curb cut compliance. There are currently 8 full time GIS staff but this number as well as the number of users is expected to grow considerably. Streets wants to use GIS as a basis for a number of other facilities management and operation support systems including pavement management, street lighting maintenance, traffic control, striping, routing for oversize and HAZMAT vehicles, snow plowing control, and customer information service. In two years, there will likely be as many as 50 users and staff accessing the system.

The Water Department has a number of GIS initiatives underway. They are planning to convert the water distribution and sewer return plans to GIS and build a new maintenance management system around it. They are going to use impervious surface percentages as part of a new method for storm water billing. They are also using GIS for combined sewer/stormwater overflow planning. They have procured Citywide orthophotography and numerous planimetric layers including curblines, building footprints, impervious surfaces, fire hydrants and sewer inlets, streetpoles, and two foot contours to support these efforts. Water and sewer features will be maintained by the Water Department but maintenance plans for the rest of the features have not yet been solidified. They currently have just three full time GIS staff but both the number of staff and users is expected to increase dramatically to a likely total of 50

The Records Department is in the process of converting the registry maps to GIS which will bring a whole new level of accuracy to the parcel base. When complete, responsibility for the parcel base will shift from PCPC to Records. Records will have approximately 25 users and staff.

While there are other Departments which, on a much smaller scale, currently use or plan to GIS our focus is on WAN requirements for the four departments with major initiatives as well as MOIS.

Since 1991 network requirements have been nagging for attention in the background while resources were focused on building the system. The advent of orthophotography brought the need for attention to network requirements instantly to the forefront. The Citywide orthophotographic compilation is 35GB. All of the departments want access to it. In our current environment, described below, access over the network is virtually impossible. The alternative to increasing the capacity of the network is populating the departments with redundant servers. From a GIS management point of view, redundant servers would lead to a maintenance management nightmare and on a Citywide basis would likely result in a much higher overall cost. An understanding of the network capacity requirement became critical.

NETWORK DESIGN ISSUES

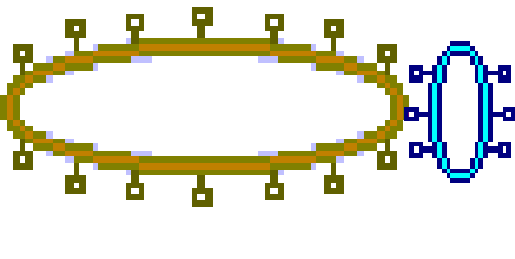

Our existing WAN consists of two interconnected SONET rings, one which links to major city buildings including the five buildings with major GIS initiatives in the commercial core and a second ring that links the Bell Atlantic C.O.s(central offices) that best meet local access requirements for many smaller city locations. This WAN infrastructure has been in existence for a few years and was put in place to build City wide connectivity at low cost and with high reliability . Both rings are currently being upgraded(3Q97) form OC3(155Mbps) to OC12(622Mbps). Up until this point in time the WAN requirements fit what could be called the Frame Relay model, i.e., most applications needed FT1(fractional T1) from the local site back to a central site serviced by one or two T1s. Hence our OC3 was a "bundle" of multiplexed T1s and did not allow us to exploit all the advantages of SONET technology although it did meet our need to build a low cost/highly reliable backbone.

One of the first things needed was a determination of the WAN bandwidth requirement. After that, the question of whether or not ATM would be needed to the desktop would be a key issue. If it turned out that ATM to the desktop was not the right approach then how we carried IP over ATM would become a critical issue. The two contending architectures that were possible for us were MPOA(multiple protocols over ATM) and LANE(LAN emulation). Since GIS was known to be a high bandwidth delay sensitive application(something we confirmed through measurement), the issue of router latency in the LANE solution needed to be confronted and understood.

In every case where we needed to model traffic, e.g., the WAN SONET ring, LANE router latency, we felt we were dealing with high bandwidth "bursty" Ethernet traffic that often required back to back images. We knew that LAN traffic of this sort is statistically self-similar, that none of the commonly used traffic models is able to capture this fractal behavior, that such behavior has serious implications for the design control and analysis of high speed, cell based(B-ISDN) networks, and that aggregating streams of such traffic typically intensifies the self-similar("burstiness") instead of smoothing it.

APPROACH

The following steps outline the major activities that were followed in the network design process:

• Gain an understanding of the application from a business perspective.

This required that before we began any analysis in support of the network design and engineering we spent time to understand how the application was used and what its users perceived its benefits to be. This included observing the use of the application in its current deployment in a stand-alone LAN environment and discussion of what some future uses might be such as 911 emergency services.

• Develop a set of networking requirements.

This included understanding the connectivity topology, i.e., where the users would be, where the data would reside, the performance objectives, LAN protocols to be used, the application system architecture, database access, etc.

• Measure the traffic characteristics of each transaction type.

Based upon a controlled test we measured how many bytes were transferred and received for each transaction type. This included accessing orthographic, map, and text data.

• Develop a set of feasible networking solutions.

Based upon the measured GIS transaction data, the response time, reliability, and maintainability objectives, assumptions of the peak period transaction arrival rate, the current and near term available technology, we determined the feasible set of networking solutions.

• Evaluate these solutions based upon the appropriate criteria.

Each networking solution was evaluated based upon criteria that management had helped identify and rank in importance. This included a debate over how to trade off the benefits of some technologies that reduced latency but were more "bleeding edge" against other technologies that had higher latency but were more proven in the business world.

• Review these results with management and make changes if necessary.

This was an iterative process that converged over time and is in fact still evolving at this writing.

• Build a PILOT/LAB environment to test the conclusions and open issues.

NETWORK DESIGN: REQUIREMENTS & ASSUMPTIONS

• CLIENT-SERVER ARCHITECTURE
  • GUI AND APPLICATION CODE RESIDE LOCALLY ON FILE SERVER AND/OR WORKSTATION
  • USER SPECIFIC DATABASES WILL PROBABLY BE POPULATED AT EACH USER LOCATION UNLESS THERE ARE SIGNIFICANT REASONS TO DO OTHERWISE
  • MANY USERS WILL NEED TO ACCESS "CORE" DATA MUCH OF THE TIME
  • THE LAN PROTOCOL IS TCP/IP

• DATABASE ISSUES
  • DATABASE ACCESS WILL INITIALLY BE CONTROLLED DOWN TO THE LEVEL OF A TILE USING LIBRARIAN, BUT EVENTUALLY TO THE LEVEL OF A FEATURE USING SDE
  • SDE WILL IMPROVE DATABASE ACCESS TIMES ON THE FILE SERVERS
  • WEB BROWSER TECHNOLOGY WILL BE USED IN SPECIFIC AREAS

• IP ADDRESSING ISSUES
  • EACH LOCATION WILL BE A SEPARATE IP SUBNET

• SERVICE TIME DISTIRBUTION
  • MEAN OF 11MEGABYTES, MAXIMUM OF 40MEGABYTES
  • WILL BE MEASURED IN A CONTROLLED TEST

• ARRIVAL DISTRIBUTION
  • FIRST CUT BASED ON POISSON DISTRIBUTION BUT WOULD COMPUTE M/G/1 BASED

ON BENCHMARK AND LATER USE C+ SIMULATION MODEL TO CAPTURE FRACTAL NATURE OF TRAFFIC ARRIVAL BEHAVIOR

• PERFORMANCE OBJECTIVES
  • KEEP THE WAN COMPONENT OF RESPONSE TIME <= 1 SECOND
  • KEEP END TO END RESPONSE TIME <= 5 SECONDS

FIRST-CUT DESIGN

These networking assumptions above and the assumptions about the initial number of users (on the chart below)

allowed us to make some very preliminary estimates of what the WAN options might be. The assumption of a mean and maximum network transaction size of 11MB and 40MB respectively was based on observing the coverage and image file sizes. This information served as a "first cut" to get us off the ground and begin to understand the nature and range of WAN options to be evaluated. Another assumption was that most of the users would need to access most of the data. We also made some assumptions about the number and type of transactions. GIS applications do not typically involve the constant transfer of data. Data are requested and generally used in some way or analyzed before more data are requested. We estimated that in a peak 15 minute period each user would make 5 requests for 11MB of data.

These numbers represent what might be expected over the next twelve months (up to 2Q98). Later, perhaps by 4Q99 we might expect this number to double to around 350. Based on these assumptions we were able to identify four feasible options for the WAN backbone interconnecting the five major sites. The four options are described below and an evaluation matrix for these four options follows:

OPTION#1: A "STAR-HUB" WITH 4 POINT TO POINT ATM PVCs @ DS3(45Mbps)

OPTION#2:A "STAR-HUB" WITH 4 POINT TO POINT HDLC CIRCUITS @ DS3(45Mbps)

OPTION#3:A "STAR-HUB" WITH 4 POINT TO POINT ATM PVCs @ OC3c(155Mpbs)

OPTION#4:A CONCATENDATED RING @ OC3c(155Mbps) running ATM

The rational for identifying these four WAN options is based on the following reasoning:

We set the WAN component response time goal high (to a second or less on average in the peak period). Since the maximum data transfer that could occur was around 40 MB(320,000,000bytes), we could not of course consider T1s. Depending on the distribution of data transfer sizes a minimum of DS3(45Mbps) would need to be considered for WAN connectivity. At the end of the spectrum OC3c(155Mbps) was both a limit that would seem to meet the 1 second criteria and was practical in terms of the availability of router and ATM switching equipment capabilities.

GIS WAN OPTIONS - RESPONSE TIME(IN SECONDS):

The four response time curves shown above are based on assuming an M/M/1 model. In queuing theory an M/M/1 model breaks down as follows: an M in the first position indicates a Poisson traffic arrival distribution; an M in the second position indicates an exponential service distribution or exponential degradation of the response time as the traffic increases; and, the number in third position represents the number of servers in the queuing model (in this case it is the single SONET OC3c ring). Because the Poisson distribution does not reflect the self-similar phenomenon of bursty EtherNet traffic we know it to be suspect, but nevertheless allows us to put the four options into perspective. Options#1 and #2 are the same from the stand point of the response time curve since whether we run ATM PVCs over DS3 or HDLC over DS3 circuits is immaterial. The HDLC option (which is a peer to peer, point to point WAN protocol) allows for a non-ATM approach to be considered. The OC3c concatenated ring has two flavors, one assumes ATM OC3c attached file servers and one assumes 100Mbps Ethernet attached file servers. The only reason to consider the 100Mbps file server option would be the availability of an ATM NIC card for the RISC6000s. The M/M/1 calculation for the OC3c concatenated ring with an ATM attached file server is shown below:

OC3c Concatenated RING, F.S. ATM Attached:

Network Response Time = service time / (1 - circuit utilization)

• R.T. = S / ( 1 - r ), M/M/1
  • r = .47 or 44% busy in peak 15 minutes
  • 150 users X 5 req/15min @ 11MB/req X 8 bits/bytes/900 sec/15min / 155Mbps = .47
  • S = 568 MSEC
    • 11,000,000BYTES X 8 bits/byte / 155Mbps = 568msec
  • AVG NETWORK R.T. = .568 SEC / ( 1 - .47 ) = 1.1 SEC

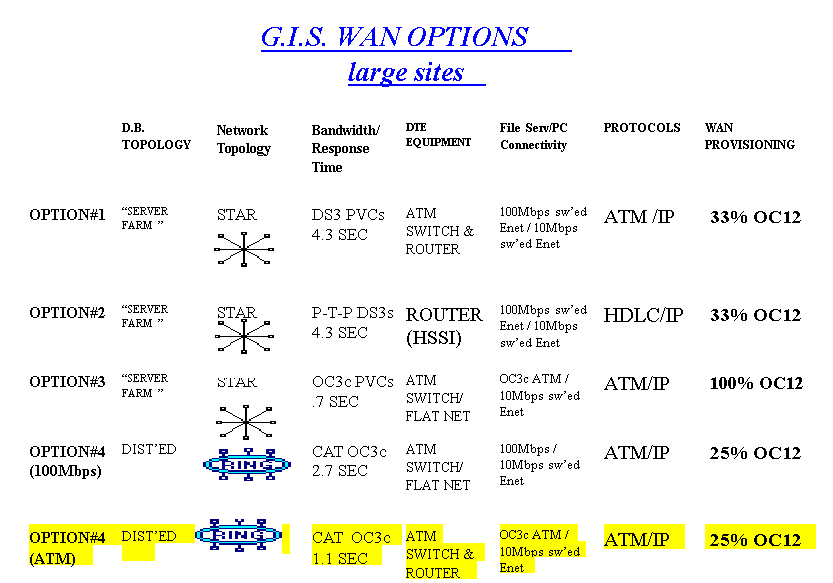

GIS WAN OPTIONS - EVALUATION MATRIX:

An evaluation matrix for the four primary WAN options is shown below. The evaluation criteria are the database topology (i.e., whether we have all servers at a central location or distributed across a number of remote locations); the associated network topology (i.e., point to point connections from remote sites to a central site vs a ring); the bandwidth required and average response time for that option; the DTE equipment at the premise location; file server and workstation connectivity; protocols used; and finally the % of the SONET ring bandwidth that would be consumed by that option.

These data suggested to us that Option#4(ATM), an OC3c concatenated ring with ATM attached file servers was the most cost/effective and appropriate choice. Although Option#3 with OC3c ATM PVCs would deliver an average .7 second response time over the WAN compared to 1.1 seconds for Option#4(ATM), it would consume the entire OC12 SONET ring which would be a prohibitive cost. Options #1 and #2 had a unacceptable WAN response time at over 4 seconds on average. We could be required to start with Option#4(100Mbps) and move to Option#4(ATM) if ATM NIC cards for the RISC6000 were not available when first needed. Once we have upgraded our existing OC3 ring to OC12 we will need to install optical multiplexors at each site to manage and control at the OC3c level, to isolate the 150MBs needed for GIS.

GIS WAN DESIGN - ATM BACKBONE:

At this point it is necessary to say something, however brief, about ATM in general and specifically as it relates to how we propose using it here for the WAN backbone. The need to provide an indivisible 155Mbps "pipe" , i.e., OC3c concatenated SONET ring, as transport for the GIS backbone requires that ATM be used as the WAN protocol. ATM is one of the general class of packet technologies that relay traffic via an address contained within the packet. Unlike more familiar technologies such as X.25 or Frame Relay, ATM uses very short, fixed-length packets called cells. In fact, the umbrella technology for this type of service is cell relay. ATM represents a specific type of cell relay service defined as part of the overall B-ISDN(broadband integrated services digital network) standard.

What makes packet technologies attractive is their suitability for data communications. For such applications, packets or cells make much more efficient use of communications channels than TDM(time division multiplexing) technologies. ATM's small fixed-length cells allow for very low switching latency and thus ATM fits the high speed transport medium provided by optical fiber technology or SONET.

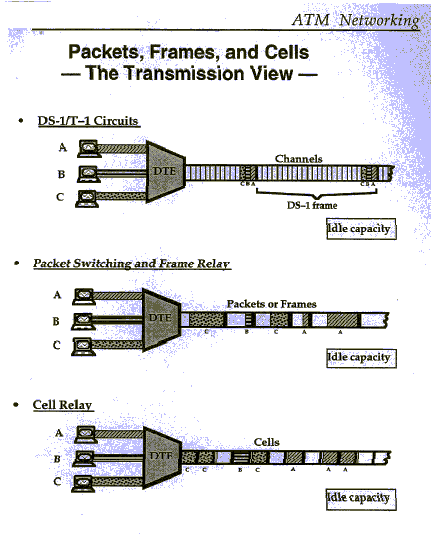

WHAT IS ATM?

• CELL RELAY
• FIXED 53BYTE CELL

WHY ATM?

• SINGLE TECHNOLOGY
• LAN, MAN & WAN
• VOICE, VIDEO, & DATA
• UNIFIED NETWORK MANAGEMENT
• EXTREMELY RELIABLE
• B-ISDN CAPABILITY

This chart printed with permission of BCR Enterprises, INC.

BENCHMARK GIS TRANSACTIONS AND COMPUTE M/G/1:

A next step in refining the estimate of the WAN bandwidth was to benchmark two classes of GIS transactions, one that accessed ortho images and one that accessed vector data. Up to this point in time we had used M/M/1 assumptions, i.e., Poisson arrival distribution, exponential service time distribution, single server. Now we were ready to benchmark these transactions in terms of measuring how many bytes of data were transmitted and received each time a request for data was made and actually calculate the mean and variance of the service time distribution based upon M/G/1 assumptions, the difference between this and the M/M/1 model being the use of the benchmark measurements in a General service time distribution. This approach still left us with an assumption of a Poisson arrival distribution but did promise to reflect the service time distribution much more accurately since it would be based upon measurements of a representative range of transaction types.

A Hewlett Packard network analyzer was used to measure the results summarized below.

The network analyzer was attached to an Ethernet port on the same LAN as the RS6000 workstation that was generating the requests for GIS data. The data resided on a file server at a remote building connected via a T1 link over the SONET ring. The workstation was mounted on the server's file system where the data were located. We chose ArcView as the access mechanism since in the future the majority of users will access the system with ArcView. The response time was measured in minutes since we were saturating the T1 with every request. The aim was to measure the number of bytes that need to be transmitted and received for a representative range of transaction types and calculate the parameters of a general service time distribution over a OC3c concatenated ring.

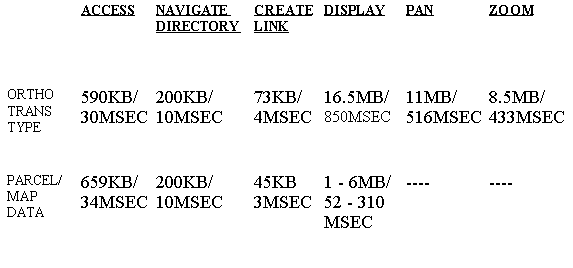

We broke down the activity into specific events observable with the network analyzer. The first step, which we called "access", corresponds to Add Theme. This was of a somewhat variable size dependent on the size and structure of the directory at which ArcView first looked. The mean measurement on the benchmark file system was about 600KB. Using the Add Theme Browse Box to change directories, which we called "Navigate Directory" also caused network activity. In our case it was about 200KB per move. Hitting the OK button in the Add Theme Browse Box, which we called "Create Link" caused small but measurable activity. The most interesting result occurred when we clicked the check box to display the theme, which we called "Display" while we were looking at an ortho image. We set the extent to the full extent of the ortho tile, which was about 3,000' x 4,000', and expected to see the full file size, 56MB, move across the network. Instead, consistently, 16MB was all that came across. Apparently ArcView does some form of dynamic resampling according to what it can reasonably display. The display of vector data also proved to cause less network activity than expected. The network transaction size was about half the size of the coverage file. The final two activities that we measured were Pan and Zoom. Using the Pan and Zoom on the vector data caused no additional network activity. Data about the complete coverage was already at the workstation. However, performing these same functions using the ortho caused interesting results. Zooming in from the full extent invariably caused the transfer of additional data, typically about 8.5MB. Panning sometimes triggered the transfer of additional data and sometimes not. Our unverified conclusion was that Zooming brought additional data in "chunks" and sometimes we Panned to an area where the data was already present and sometimes where additional data still needed to be transferred.

Overall, in spite of the fact that we erred in our assumption that the maximum network transaction size would be up to 40MB, the mean network transaction size measured in the course of the benchmark was 10.4MB, off just .6MB from our assumed mean of 11MB.

SUMMARY OF BENCHMARK DATA:

The results of this benchmark were illuminating in a number of ways. It gave us not only a better feeling for what the WAN component of over all response time might be for various level users and/or transaction rates(see chart on following page) but it also gave us an understanding for how the transactions request data when PAN and ZOOM functions are invoked.

Previous analysis indicated that an OC3c concatenated SONET ring was the most cost/effective way to provision the required WAN bandwidth. With this in mind the benchmark results were put in an M/G/1 model where the service times assumed an OC3c(155Mbps) concatenated ring with various transaction arrival rates.

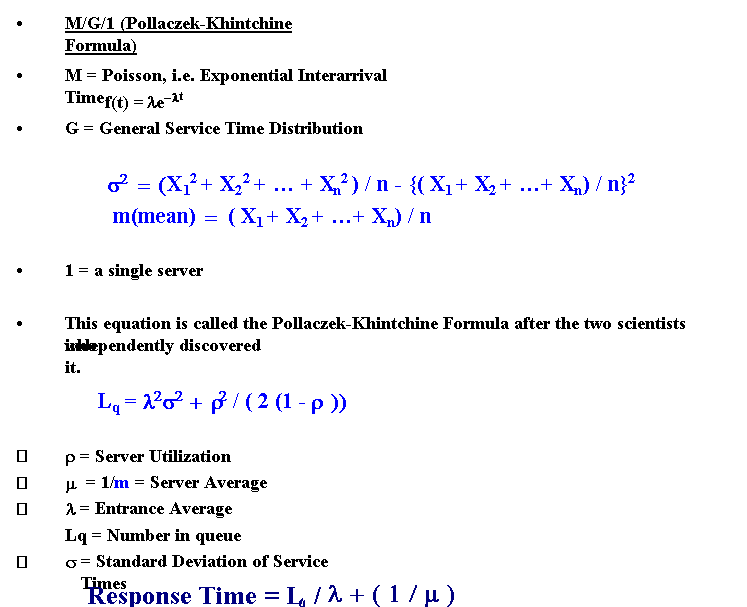

• M/G/1 PARAMETERS:

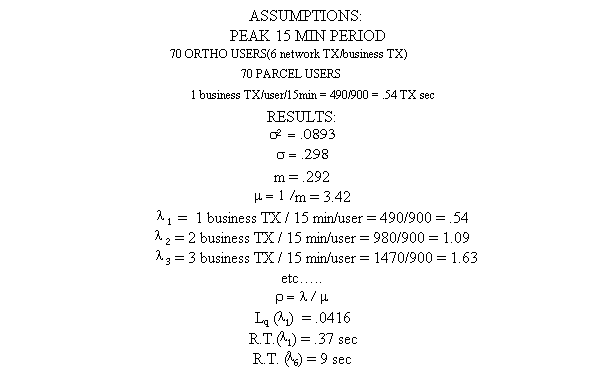

• M/G/1 CALCULATIONS:

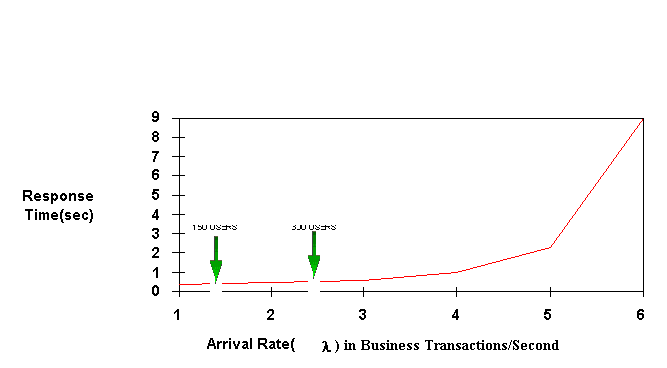

RESULTS OF BENCHMARK - RESPONSE TIME CURVE:

The chart below shows a WAN component of response time of under 1 second even if the transaction arrival rate is 2 or 3 times what we expect for 150 to 300 users. The "X" axis of this chart is in "business transaction" as opposed to network transactions. A business transaction would be composed of a sequence of network interactions with the server and/or workstation, i.e., an ACCESS, NAVIGATE DIRECTORY, CREATE LINK etc. This distinction is emphasized since business transaction are the things which usually can be forecasted based on some number of users.

At this point we need to remember that this work is still based on Poisson arrival distribution assumptions. If we were dealing with general Internet traffic use of Poisson models would certainly result in major underestimation of the WAN bandwidth requirements. We have a much simpler, bounded and controlled situation since we can describe with some assurance our traffic characteristics although we still have uncertainty as regards the effect of aggregated traffic sources. This chart would suggest that an OC3c concatenated ring would be sufficient for the initial deployment of between 150 and 300 users. It would also mean that we would have sufficient time to take corrective actions if we were off by a factor or two or three in terms of the actual bandwidth required . From a practical business perspective we would proceed with plans(which we are doing) to provision an OC3c concatenated ring for GIS over the WAN based on these results.

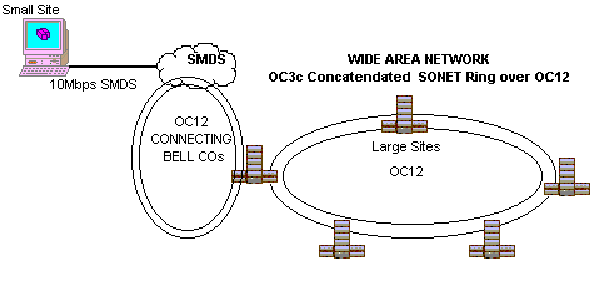

This SONET backbone connecting major sites is depicted below:

It seems then that we had a solution in which we should have a high degree of confidence that the OC3c concatenated ring will deliver the needed WAN response time and does not warrant further effort at this point in time. When we turn our attention to the problem of how to carry LAN traffic over the ATM boundary (MPOA vs LANE) alluded to in the introduction, we are, however, again faced with the problem of how to deal with "bursty" Ethernet traffic. The following section examines how we envisioned connecting major locations to the WAN backbone and the performance and architectural issues that were identified .

PREMISE LAN CONNECTIVITY:

The basic requirements that determined the design options for the premise LAN environment were:

• Each location would be on different IP subnets.

The number of users and the number of applications and network connections that would be needed to be supported from each location would preclude any thoughts of a "flat" network.

• We would not use ATM at the desktop.

10 and/or 100Mbps switched Ethernet and the emergence of Gigabit Ethernet would mean ATM would only make sense for us over the backbone WAN.

• GIS was a high bandwidth application.

The benchmark had shown that requesting multimegabyte back to back images would be done as a matter of course.

• GIS was a latency sensitive application.

As the number of users grew, multiple users would access data at the same location so we should expect that "bursty/fractal" traffic behavior would result. We knew that near term future uses of GIS would involve production environments including "911" and other public safety users so that responsiveness would become more of a concern over time. This meant that we might need to be wary of any architectures that required that the data incur traditional router latency when moving across IP subnets.

The two basic architectures that were available to us to carry TCP/IP traffic over ATM were MPOA and LANE. The MPOA solution was at the time of this writing(April 97) offered only by Newbridge with a proprietary solution termed by them "VIVID". That same month the ATM Forum has voted to make MPOA a standard and we knew that most major vendors would or had already announced support of MPOA. The issue of when a vendor would be able to deliver equipment would become important since we needed to be in a position to order and install equipment by the 2Q98. MPOA had the advantage that it would avoid "router latency", i.e., when a user requested back to back images across the WAN, each multimegabyte request for data would result in an initial "visit" to a router to resolve MAC and ATM addressing and then an ATM SVC(switch virtual circuit) would be established after which the data would be streamed across the network bypassing the router. The chart below shows a Newbridge "VIVID" implementation for a typical "large" GIS location.

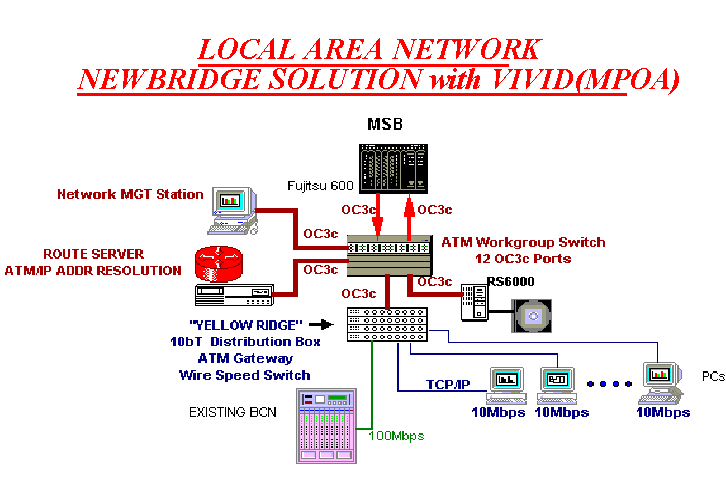

• Newbridge "VIVID" MPOA Implementation:

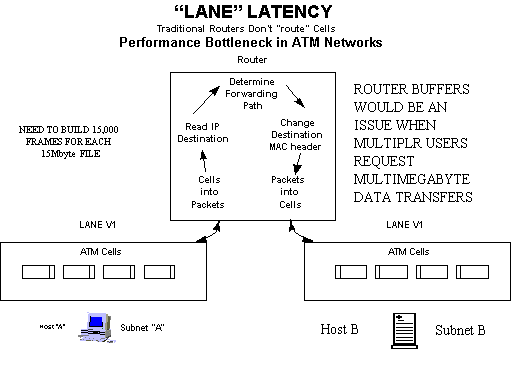

The LANE solution, on the other hand, would route every packet through the router at the file server location to another router across the WAN where the user resides. This approach works very well when you have "small" transmissions to "many" locations. What we have are "large" transmissions to a "few" locations. The back to back image transfers using PAN and ZOOM, which are done as a matter of course, are a very clear example of this. The issue of router latency centers around the router's buffering capacity to handle multiple users requesting back to back multimegabyte data transfers. A BayNetworks LANE implementation is shown below:

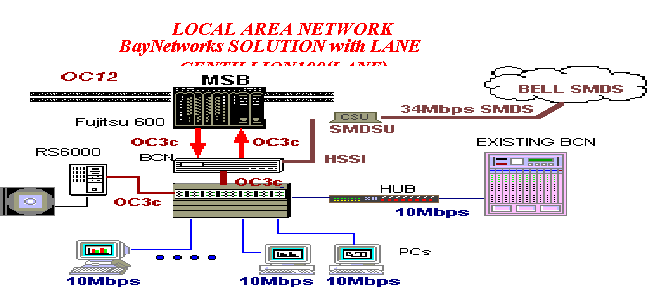

• BayNetworks LANE Solution:

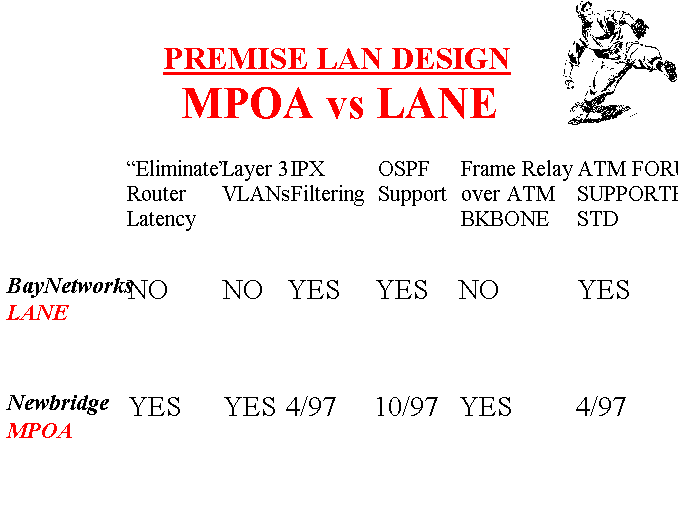

• MPOA vs. LANE:

There is more to the MPOA vs. LANE evaluation than the issue of router latency, however critical that might be. The chart below indicates the other major issues that needed to be considered as of this writing. There is , of course, the issue of costs, one time equipment costs, recurring circuit costs, maintenance and support costs, all of which will enter into any final decision. Since BayNetworks has also announced support for MPOA we need at this writing to determine from them the time table for this announcement.

We felt we had convincing evidence that a LANE implementation would be untenable once the usage matured to the 150 to 300 user range due to the router latency issue stated previously. This conclusion was based upon the benchmark which demonstrated that typical usage of the application would generate multimegabyte back to back data transfers across the WAN. We corresponded with Mr. Vern Paxson and others with BellCore who had done work on the self-similar fractal nature of bursty LAN traffic and they helped us understand that fetching back to back large images fell into the category of traffic behavior they were studying. We also attended a seminar sponsored by NetworkWorld and given by Mr. Scott Bradner who runs a telecommunications testing LAB at Harvard University. He indicated that the router buffer performance under a LANE scenario would be something we would need to measure carefully.

This led us to conclude that an MPOA-like solution was needed. Whether or not it was a BayNetworks, Newbridge, or CISCO solution or some other vendor was not as yet the issue. We did and are in the midst of taking additional steps to add a final degree of confidence in our conclusions. Those last steps are twofold as of this writing. One is to build an MPOA prototype with the help of the vendors and create the expected peak conditions which would demonstrate the ability of MPOA to deliver the performance required. At this point we see no need to go through the considerable effort that it would take to demonstrate that LANE could not deliver the needed performance. It was not designed to do so given the nature of the high bandwidth latency sensitive traffic we need to service and every indication we had ( the benchmark, studies from BellCore, etc.) was that we needed to avoid such latency. The second parallel effort is to use a C+ simulation model that was developed by Mr. Paxson's colleague's. At this writing we do not know which approach may prove most practical and useful so at this stage we are pursuing both.

SUMMARY:

The challenge that faced us was how to determine the network design and technology that would ensure the needed reliability, availability, maintainability, scalability and performance over time for Philadelphia's GIS, a high bandwidth latency sensitive application, which originally existed in a stand-alone LAN environment. This application is expected to grow substantially in number of production applications and users. Therefor it was important to anticipate any hidden latency that might only become evident as traffic levels grew and to ensure that our architecture and technology was scaleable.

These general guidelines helped lead us to some major conclusions regarding the network architecture and the types of technology we plan to employ. ATM was determined to be the protocol to service the network backbone primarily because we needed an indivisible 155Mbps "pipe" and because we viewed this backbone in strategic terms, i.e. , we expected it to service emerging B-ISDN applications like Internet and InTRAnet in addition to GIS and hence be able to grow transparently to higher bandwidth.

On the premise side we plan to connect file servers with ATM at 155Mbps since in general they need to service aggregate traffic from many locations. If an ATM NIC card is not available for the RIS6000s in the time frame required we would connect then at 100Mbps switched Ethernet until such time. Desktops would be connected at 10Mbps switched Ethernet and could grow to 100Mbps switched Ethernet and eventually Gigabit Ethernet over time. We also concluded that an MPOA-like architecture was required to carry IP traffic over ATM since we needed to avoid the router latency of a traditional LANE implementation. This lead us to undertake building a MPOA prototype to replicate peak traffic conditions using GIS applications and pursue a BellCore supplied C+ simulation model until one approach proves more feasible. Hopefully we will be able to report on the results at the Esri User Conference.

ACKNOWLEDGEMENTS

We would like to acknowledge the generous help of Mr. Russel Hale, Bell Atlantic Corp., Wilmington, DE; Mr. Harold Farrey, CIGNA Corp, Voorhees, NJ; and Mr. Vern Paxson, Lawrence Berkeley Laboratory, Berkeley, CA.
