MSGEIS - A GIS Application to Generate Mobile Source Emission Inventories

The Air Pollution Control Division, Colorado Dept. of Public Health and Environment (CDPHE) is charged with creating inventories of mobile source pollution in the Denver metro area. Given a transportation network and traffic volume data, an inventory is created that contains the total emissions for each of a number of pollutants for every link in the road network. Increased demand for these inventories has necessitated the automation of the process, and a GIS-based application, the Mobile Source Geographic Emission Inventory System (MSGEIS), was created to answer the problem. This system combines ArcInfo with external emission factor models to produce the required coverages and reports with an absolute minimum of user intervention.

Background

The Denver Council of Regional Governments (DRCOG) works with CDPHE to insure that growth and development within the Denver metro area do not cause air quality to fall below the target levels mandated by the EPA. To this end DRCOG formulates various strategies to mitigate air pollution such as alternative transportation, HOV lanes, street sanding alternatives, etc.; and using the MINUTP transportation model, creates road networks attributed with traffic volume and speed information. An estimate of vehicle miles travelled in the Denver metro region can be derived from the transportation networks. The CDPHE then takes the transportation networks and using GIS and emission factor models creates an emissions inventory for each strategy. This inventory shows, for every link in the road network, the amount of pollution attributable to mobile sources travelling along that link(figure 1).

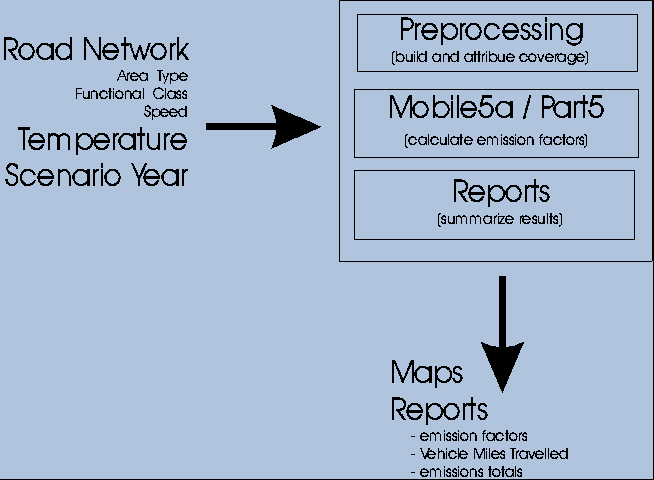

Figure 1 - Generalized data flow in MSGEIS

Emissions Inventory Theory

The emissions inventory is a function of the amount of vehicle miles of travel (VMT) and the emission rate expressed in grams per mile for that travel. For any given road segment during a given time of day, the emissions rate is determined by both the type of vehicles travelling on that segment and how they are being operated. Several characteristics of the travel occuring on the road segment are assigned as a function of the segment's functional class, area type, and the time of day. A road's functional class reflects its character (freeway, arterial, collector, etc.) in the overall road network. The area type indicates the generalized part of the metropolitan area that it falls into (e.g. central business district, suburban, rural, etc.) The type of vehicles and their operating modes are determined by knowing the segment's functional class, area type and time of day. In other words, for each unique combination of functional class, area type, and time period a unique operating mode and vehicle mix is assigned to the travel on that segment. In addition, traffic speed, which is provided as an attribute for each link in the transportation network, in part characterizes the vehicle travel. For modeling purposes, a day is divided into 10 time periods - 3 morning, 3 afternoon, and 4 off-peak. As an example of how these elements affect emissions rate, consider rush hour on an arterial road in the Central Business District. Here one would expect traffic congestion (i.e. slow speeds) and that the vehicles would largely be commuter cars. At that same time on a freeway in the suburban area, one could expect both higher speeds and a higher percentage of truck traffic. These two scenarios have widely different emission rates and consequently have greatly different inventories.

For a given individual link in the road network, only three basic elements of data are required to generate the emissions for a given pollutant: length, traffic volume, and emission rate (grams of emissions = length in miles * volume * emission rate in grams/mile). However, it is in the emission rate calculation that much of the complexity arises. The Mobile5a model, originally developed by EPA, is used to calculate emission rates for the pollutants Carbon Monoxide, Hydrocarbons, and Nitrous Oxide (CO, HC, and NOX). The calculations are performed once for each unique combination of functional class, area type, and time period taking into account many factors including speed, scenario year, air temperature, and season. In addition, in the Denver metro area there is an inspections/maintenance program underway to detect and repair cars with high pollution rates. To incorporate the effects of this program all the calculations must be made an additional 4 times using different sets of inspection and maintenance parameters. So overall, for a given inventory year, the Mobile5a calculations are made 3,200 times! The output from all these calculations are distilled into an emission rate for each pollutant for each season for each unique combination of functional class, area type, and time period (800 values).

A second model, Part5, which was also developed by EPA is used to calculate the emission rates for Sulfur Dioxide, 10 micron particulates, and 2.5 micron particulates (SOX, PM10, and PM25). Fortunately the calculations are much simpler for these pollutants since they are not affected by season nor temperature. The output from these model runs is condensed into a format similar to that of the Mobile5a runs; one emission rates for each pollutant for each unique combination of functional class, area type, and time period.

Sanding and reentrained emissions, two types of particulate pollutants, are derived from static lookup tables based on functional class and area type. However, "credits" must be applied to reduce these emissions in order to account for street sweeping. These credits are based upon a road segment's presence within three different geographical areas representing different sweeping strategies.

Software Architecture and Implementation

The overriding objective for the MSGEIS was to reduce the amount of user-intervention required for the inventory process to an absolute minimum while maintaining (or improving) the accuracy and usability of the results. Additionally the system needed to be as flexible and easy-to-use as possible and relatively robust in terms of error-handling, From a software design perspective, the objectives were to create an application that was dynamic and modular.

The application is implemented using a single AML which acts as an executive, controlling the execution of a collection of perl, Bourne shell, and tcl/tk scripts through the use of the TASK function. Processing times can be many hours long so status messages are written to a separate logfile for each inventory created. Perl scripts are used for a variety of pre- and post-processing tasks which are largely the reformatting and extraction of text files. For example, converting the network files generated by DRCOG's traffic model into a ArcInfo GENERATE file.

The goal of modularity was addressed by using AML subroutines to group the functionality into relatively independent modules. Not only did this facilitate debugging and maintenance, but it allows only the required code to be executed. For instance, if the user only wants a Vehicle Miles Travelled (VMT) report, the emission rates calculation code is not required and not called even though it is part of the same AML program. Initially, the approach was to separate the functionality into different AML programs rather than subroutines, but given some required dependence between modules, conveying the state information between programs proved to be cumbersome.

Functionality that is best handled outside of AML is accomplished through shell and perl scripts which behave like AML functions - receiving parameters and returning values.

In order to accommodate the desired flexibility in processing, the MSGEIS must be somewhat dynamic. The application creates several INFO programs and reports as well as some AML programs at runtime. This allows them to be tailored according to the needs of that particular run. For instance, if a user requests reports on only certain pollutants, the INFO reports and programs will be created on-the-fly to exclude the unneeded ones. An side benefit to this strategy is that there is no dependence on a particular workspace or INFO directory since all INFO programs and reports are created, run, and deleted for each inventory processed.

The emission rates calculations are handled by two Bourne shell scripts, one for the Mobile5a model and one for the Part5 model. These scripts receive the necessary parameters from the AML executive and then create the input files for the models, sometimes requiring a call to another external program. The emission rates models themselves are then run, followed by the required post-processing scripts. The end results are stored in an INFO table using the class/area type/time period as the relational key. All of the complexity of multiple model runs, pre- and post-processing is completely hidden from the AML executive.

The user-input required is minimal, but what is necessary is handled through a graphical user interface implemented in the Tcl/Tk language. This approach was selected over AML's Form Menus because of the additional flexibility Tk afforded. Four dialogs are presented at the outset of the application and this is the only user-interaction required. The first dialog (figure 2) allows the user to select via check boxes which road networks to process. The check boxes are built at run-time based on available road network datasets. The second dialog offers the user the choice of spatial modeling domains which limit the extent of the inventory. The third dialog (figure 3) presents the user with a choice of pollutants for which to calculate inventories. The fourth dialog (figure 4) sets the temperatures for AM, PM and off-peak time periods for both winter and summer. Standard values are provided as defaults, and the minimum and maximum values required by the models are derived from the inputs. The last dialog (figure 5) gives the user the opportunity to specify which output reports to generate and whether to have them automatically printed. After this point the user can walk away and the inventory will be created for each requested network in sequence.

Figure 2 - Network selection dialog

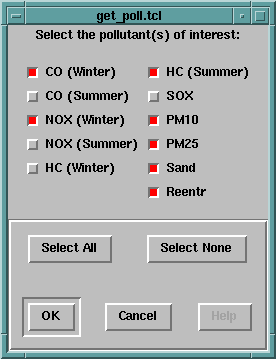

Figure 3 - Pollutant selection dialog

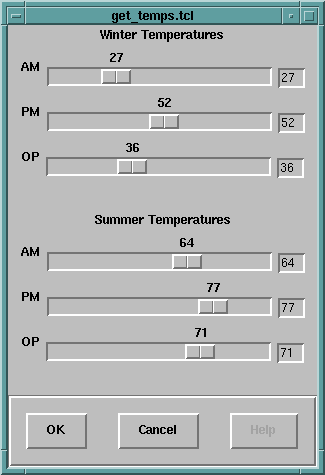

Figure 4 - Temperature selection dialog

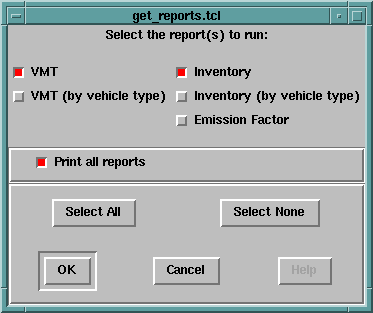

Figure 5 - Report selection dialog

Reports and Results

The principal output from the system is a coverage where each road segment has attributes for functional class, area type, traffic volumes, and the total emissions for each of the pollutants for that particular link. Given these data a number of useful summaries are possible such as thematic maps showing the spatial distribution of traffic or emissions across the road network. However, currently the most popular outputs are the tabular reports showing summaries, by functional class and area type, of the total emissions for each pollutant and time period (see figure 6). VMT reports, also summarized by class and area type, are much quicker to calculate and are frequently used as a quick check that the network is reasonable. Although less often required, emissions summaries by vehicle type are also available.

Figure 6 - A portion of the Emissions Summary report

Emissions Summary for lv20
April 11, 1997 8:47 AM
Analysis Domain: bound
Winter Temperatures -
AM: 27
PM: 52
OP: 36
Summer Temperatures -
AM: 64
PM: 77
OP: 71

             AM PERIOD    PM PERIOD    OP PERIOD       TOTAL GRAMS     TOTAL TONS
 CO_W       13,430,762   21,678,681   23,661,901       58,771,345      64.78
 CO_S       10,713,334   18,296,490   19,471,217       48,481,042      53.44
 NOX_W       1,471,005    3,082,605    5,527,568       10,081,179      11.11
 NOX_S       1,268,978    2,763,431    4,754,124        8,786,534       9.69
 HC_W        1,598,693    3,146,558    3,188,161        7,933,413       8.75
 HC_S        1,286,074    2,696,116    3,169,735        7,151,926       7.88
 SOX            80,866      187,551      289,864          558,282       0.62
 PM10           60,367      138,537      216,584          415,489       0.46
 PM25           48,569      110,973      174,716          334,259       0.37
 SAND           47,385      111,515      167,034          325,935       0.36
 REENTR        603,524    1,476,430    2,006,655        4,086,609       4.50

 04/11/97                                                PAGE    1

  CO_W            AM EMISSIONS SUMMARY REPORT - LV20

   AREA   ROAD          AM1          AM2          AM3        TOTAL
   TYPE  CLASS      (GRAMS)      (GRAMS)      (GRAMS)      (GRAMS)

      1      1            0            0            0            0
      1      2            0            0            0            0
      1      3            0            0            0            0
      1      4            0            0            0            0
      1      5        1,310        1,138        1,761        4,209
      1      6            0            0            0            0
      1      7            0            0            0            0
      1      8            0            0            0            0
               ------------ ------------ ------------ ------------
      1               1,310        1,138        1,761        4,209

      2      1      259,407      210,926      318,255      788,588
      2      2        9,512        7,327        9,262       26,101
      2      3      175,899      154,472      224,411      554,783
      2      4       73,567       64,466       96,343      234,376
      2      5       63,312       65,801      107,467      236,580
      2      6       22,178       19,109       25,867       67,154
      2      7            0            0            0            0
      2      8       23,270       14,188       15,713       53,171
               ------------ ------------ ------------ ------------
      2             627,145      536,289      797,318    1,960,752

Conclusion

The MSGEIS system has evolved over the course of a few years, but underwent a major re-engineering and enhancement effort in 1996. The system is now fully operational and has dramatically increased the number of inventories that CDPHE can process. It is anticipated that during 1997, DRCOG will be bringing MSGEIS up on their system. Although, this will mean moving from a Data General Aviion to a Solaris environment, few problems are anticipated since the majority of the code is in platform-independent scripting languages.

John Cartwright, Richard Barrett, and Barbara MacRae
Air Pollution Control Division, Colorado Department of Public Health and Environment
APCD-MS-B1
4300 Cherry Creek Drive South Denver, Colorado 80222-1530
Telephone: (303) 692-3141
Fax: (303) 782-5693
